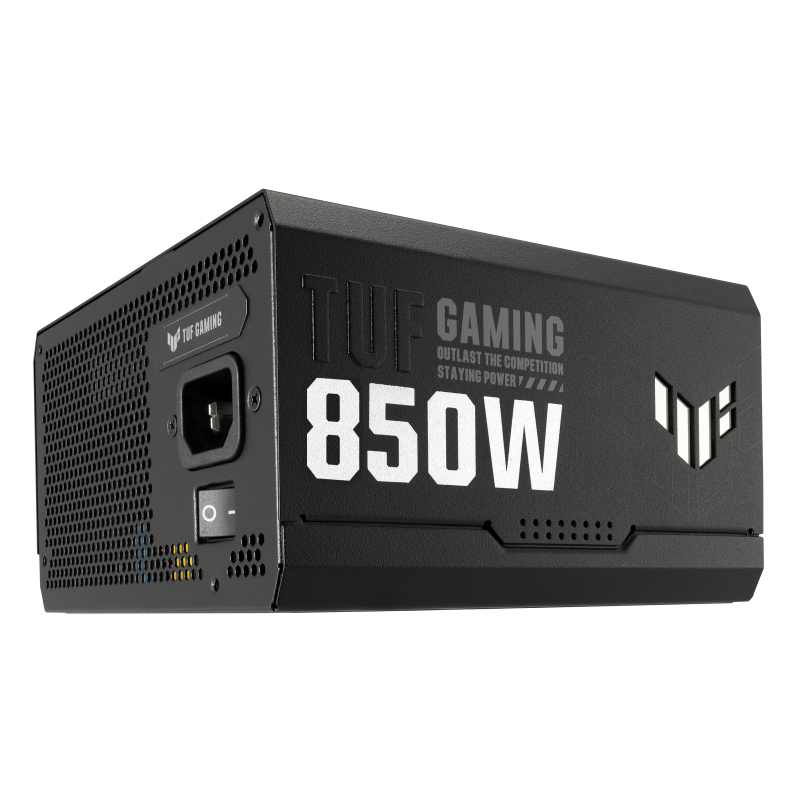

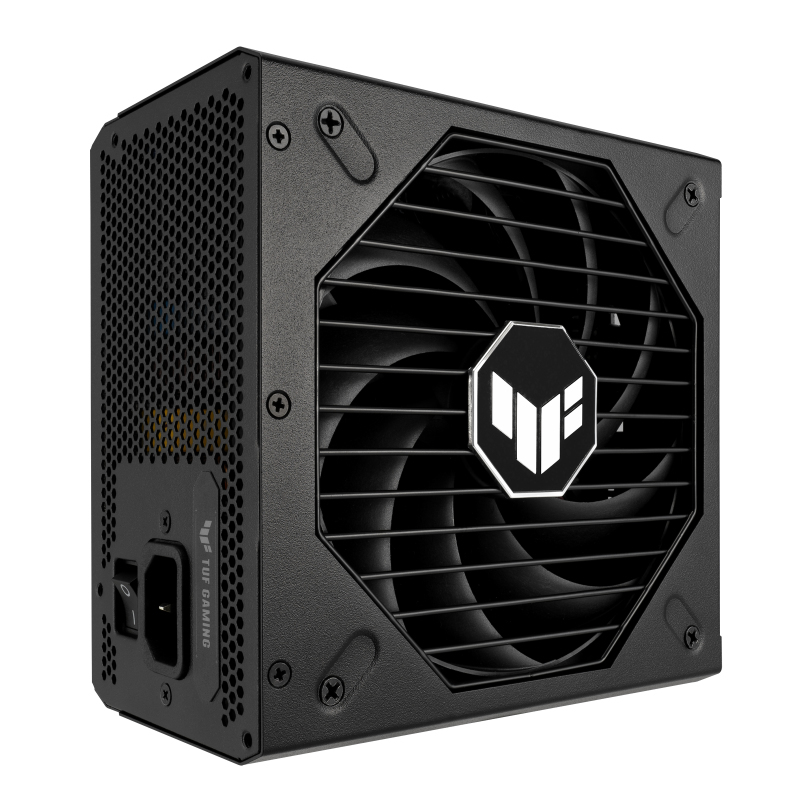

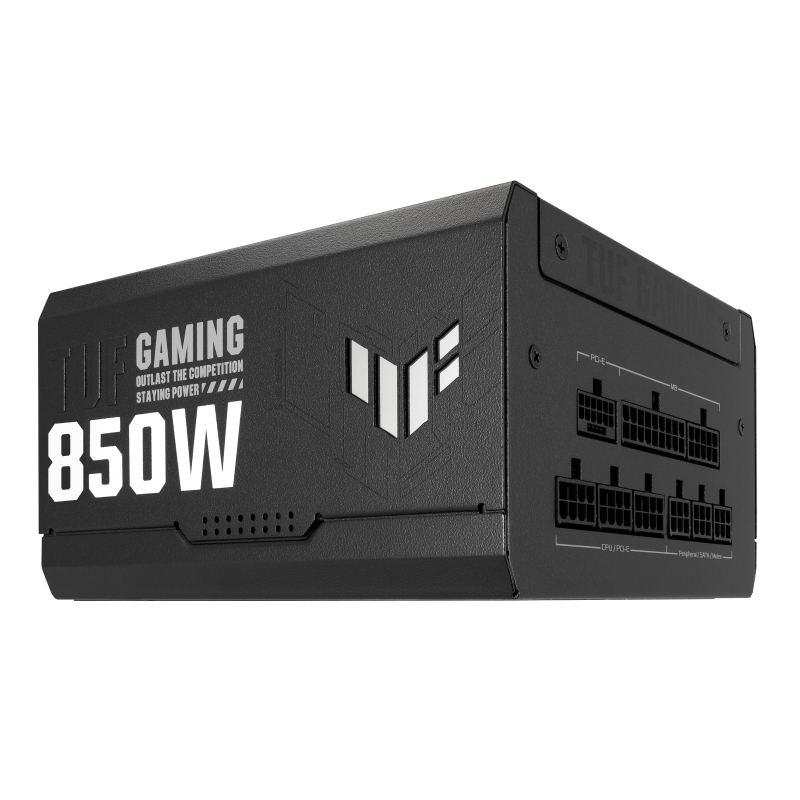

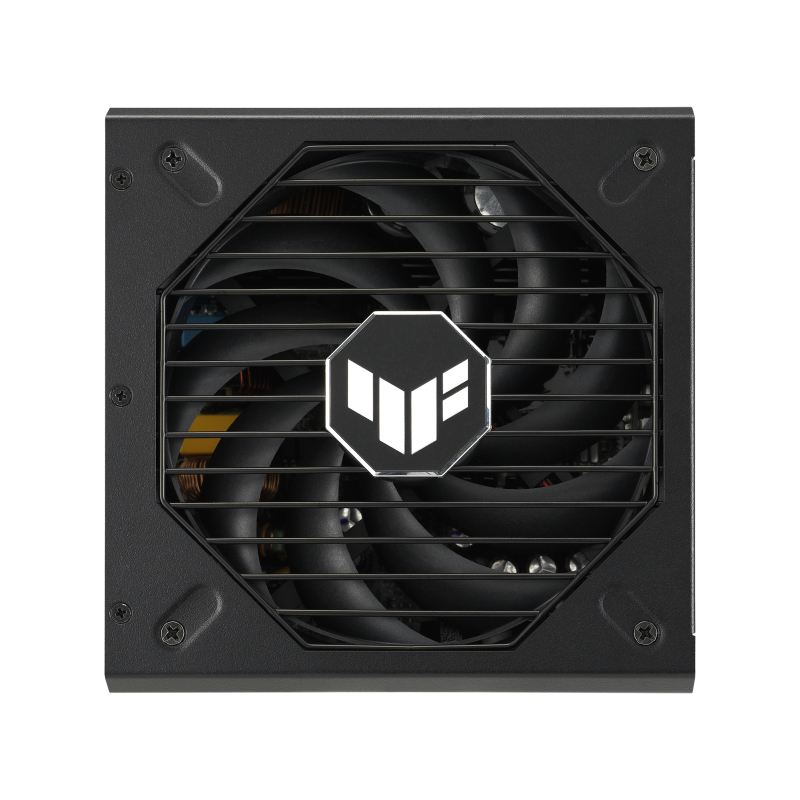

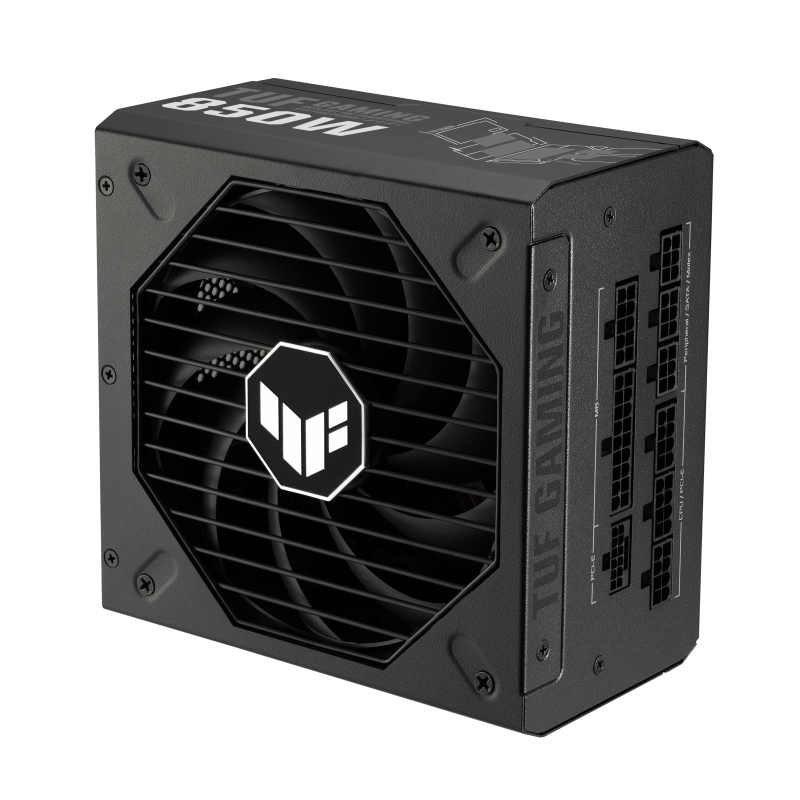

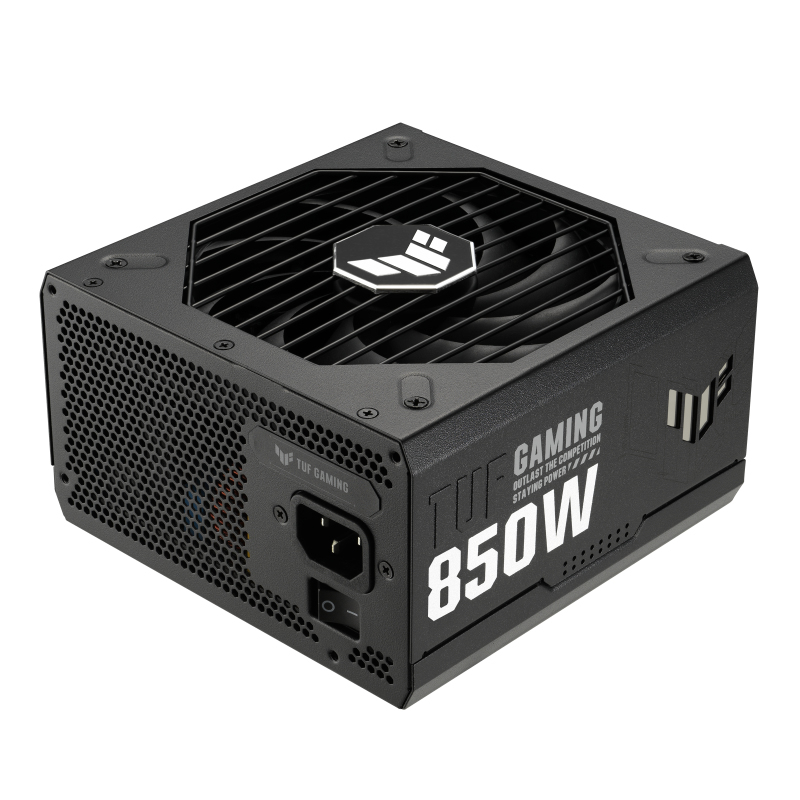

Asus Power Supply Unit 850 W 24-Pin Atx Atx Black

Design
Cooling type > Active
Fan diameter > 13,5 cm
Number of fans > 1 ventilator(en)
On/off switch > Y
Product colour > Black
Operational conditions
Operating temperature (T-T) > 0 - 105 °C
Package dimensions
Gross Weight (Package, kg) > 0,65 kg
Packaging content
Cable tie(s) included > Y
Cables included > AC, CPU, PCIe, Peripheral (Molex), SATA
Performance
80 PLUS certification > 80 PLUS Gold
ATX version > 3.0
Bearing technology > Ball bearing
Mean time between failures (MTBF) > 170000 Hour
Power supply unit (PSU) form factor > ATX
Purpose > PC
Ports & interfaces
Cabling type > Modular
CPU power cable length > 65 cm
CPU power connector (4+4 pin) > Y
Motherboard power cable length > 61 cm
Motherboard power connector > 24-pin ATX
Number of SATA power connectors > 5
PCI Express power cable length > 67,5 cm
PCI Express power connectors (16-pin) > 1
PCI Express power connectors (8-pin) > 3
Peripheral (Molex) power cable length > 150, 400
Peripheral (Molex) power connectors (4-pin) > 4
SATA power cable length > 120, 400
Power
AC input voltage > 100 - 240 V
Combined power (+12V) > 850 Watt
Combined power (+3.3V) > 130 Watt
Combined power (+5V) > 130 Watt
Combined power (+5Vsb) > 15 Watt
Combined power (-12V) > 9,6 Watt
Efficiency > 92 procent
Max output current (+12V) > 70,8 A
Max output current (+3.3V) > 25 A
Max output current (+5V) > 25 A
Max output current (+5Vsb) > 3 A
Max output current (-12V) > 0,8 A
Power protection features > Over current, Over power, Over voltage, Short circuit, Under voltage
Total power > 850 Watt
Product dimensions
Net Weight (Product, kg) > 0,5 kg
Technical details
Sustainability certificates > RoHS
Warranty period > 10 jaar
Vendor information
Brand Name > Asus
Warranty > 1 Ja(a)r(en)
