Artikelcode: SRTL5KRM2UI
Netwerk - Noodstroom - UPS

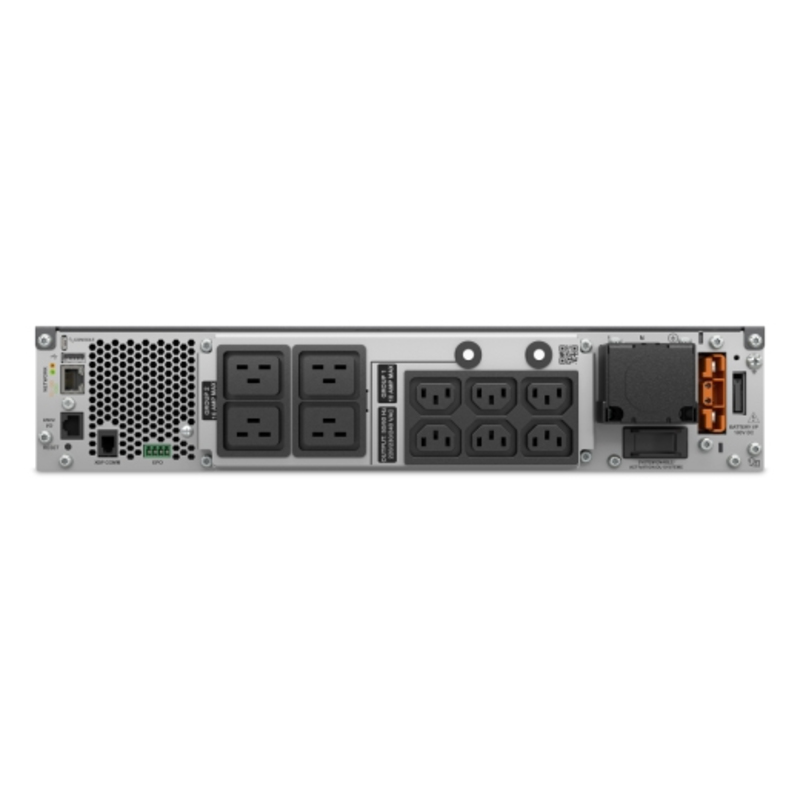

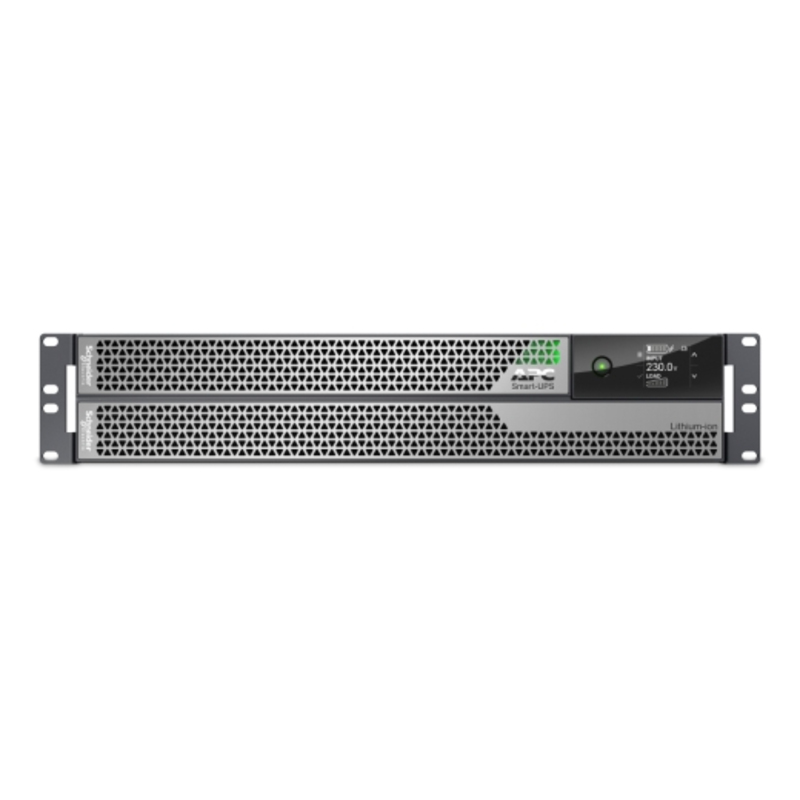

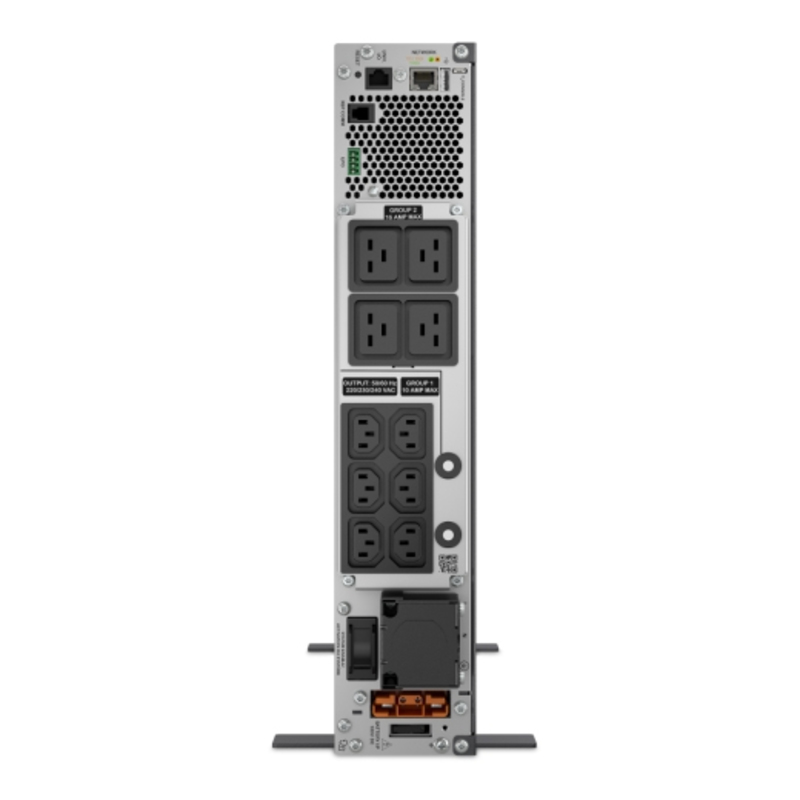

APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KVA/5KW, 2U Rack/Tower, 6x C13 & 4x C19
Onbekend levertermijn Contacteer ons
Magazijn: grbr
With Smart-UPS Ultra you can put up to 5000W of power protection in places never before possible. Make installation effortless with a 5kW UPS that is 30% smaller and 50% lighter than of comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime. APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure, ensuring data is available âwhenever and wherever you need it. The APC Smart-UPS Ultra 5000W 2U 230V with Embedded Network Port. Its next generation semiconductor technology delivers 5000W in a 2U form factor. In addition to long lasting Lithium-ion batteries the weight is reduced by half in comparison to Lead Acid VRLA UPS. With the Embedded Network management you can monitor and manage your UPS anytime, anywhere Reclaim your space With 5kW in 2U, Smart-UPS Ultra gives you more room and power for IT equipment. An ultra-compact UPS that gives you the mounting flexibility like never before: rack, tower, wall, ceiling and desk under mount. 3x the life with Lithium-ion batteries Lithium-ion batteries last 3x longer than VRLA batteries meaning you save battery replacement AND labor costs up to 3x! Visibility anywhere, anytime Embedded Network management card with PowerChute Network Shutdown software for convenient monitoring and control. Certainty in a connected world Trusted for 40 years Schneider Electrics APC Brand has 120 million single-phase UPS installed worldwide. APC products are available in over 160 countries with 250 Service locations worldwide
| Technische details | |
|---|---|
| Naleving van duurzaamheid: | Ja |
| Duurzaamheidscertificaten: | CE, RoHS |
| Poorten & interfaces | |
| Stopcontacttypes: | C13 stekker, C19 stekker |
| Stekker: | Hardwire |
| Aantal AC uitgangen: | 10 AC-uitgang(en) |
| USB-poort: | Ja |
| Seriële interface: | Ja |
| Seriële poort(en): | 1 |
| Gewicht en omvang | |
| Breedte: | 432 mm |
| Diepte: | 701 mm |
| Hoogte: | 86 mm |
| Gewicht: | 29,2 kg |
| Breedte verpakking: | 585 mm |
| Diepte verpakking: | 984 mm |
| Hoogte verpakking: | 392 mm |
| Gewicht verpakking: | 38,5 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Temperatuur bij opslag: | -15 - 45 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 0 - 95 procent |
| Luchtvochtigheid bij opslag: | 0 - 95 procent |
| Hoogte, in bedrijf: | 0 - 3048 m |
| Hoogte bij opslag: | 0 - 15240 m |
| Accu/Batterij | |
| Batterijtechnologie: | Lithium-Ion (Li-Ion) |
| Accu/Batterij voltage: | 180 V |
| Typische backup tijd op volledige lading: | 5,25 min |
| Acculevensduur (max): | 10 jaar |
| Accu/Batterij oplaadtijd: | 1,5 uur |
| Automatische batterij test: | Ja |
| Koude start: | Ja |
| Overige specificaties | |
| Netspanning, in bedrijf: | 230 V |
| Nominale input voltage: | 230 V |
| Design | |
| Vormfactor: | Rackmontage |
| Kleur van het product: | Zwart |
| Rackcapaciteit: | 2U |
| Type beeldscherm: | LCD |
| Internationale veiligheidscode (IP): | IP20 |
| Kenmerken | |
| UPS-topologie: | Dubbele conversie (online) |
| Output power capacity: | 5 kVA |
| Uitgangsvermogen: | 5000 W |
| Golfvorm: | Sinus |
| Ingang operation voltage (min): | 180 V |
| Ingang operation voltage (max): | 275 V |
| Frequentie: | 40/70 Hz |
| Uitgang operation voltage (max): | 220 V |
| Output frequentie: | 50/60 Hz |
| Surge energy rating: | 1260 J |
| Warmtedissipatie: | 931 BTU/h |
| Power factor: | 1 |
| Output vermogensfactor: | 1 |
| Crest factor: | 3:1 |
| Emergency Power Off (EPO): | Ja |
| Output voltage THD: | 2 procent |
| Geluidsniveau: | 55 dB |
| Auto-herstart: | Ja |
