Artikelcode: SRT6KRMXLIM
Netwerk - Noodstroom - UPS
Geschatte levertermijn:
28-09-2026 Contacteer ons
Magazijn: grbr
| Technische details | |
|---|---|
| Duurzaamheidscertificaten: | RoHS |
| Poorten & interfaces | |
| Stopcontacttypes: | C13 stekker, C19 stekker, IEC Jumpers |
| Stekker: | Eindstation |
| Aantal AC uitgangen: | 13 AC-uitgang(en) |
| USB-poort: | Ja |
| Aantal USB 2.0-poorten: | 1 |
| Seriële interface: | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Bekabelingstechnologie: | 10/100Base-T |
| SmartSlot: | Ja |
| Gewicht en omvang | |
| Breedte: | 432 mm |
| Diepte: | 719 mm |
| Hoogte: | 174 mm |
| Gewicht: | 60 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Temperatuur bij opslag: | -15 - 45 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 0 - 95 procent |
| Luchtvochtigheid bij opslag: | 0 - 95 procent |
| Hoogte, in bedrijf: | 0 - 3000 m |
| Hoogte bij opslag: | 0 - 15000 m |
| Verpakking | |
| Breedte verpakking: | 610 mm |
| Diepte verpakking: | 960 mm |
| Hoogte verpakking: | 370 mm |
| Verpakkingsvolume: | 67000 cm³ |
| Accu/Batterij | |
| Batterijtechnologie: | Sealed Lead Acid (VRLA) |
| Ondersteund aantal accu's/batterijen: | 1 |
| Acculevensduur (max): | 5 jaar |
| Accu/Batterij oplaadtijd: | 1 uur |
| Hot-swap batterij: | Ja |
| Automatische batterij test: | Ja |
| Design | |
| Vormfactor: | Rackmontage |
| Kleur van het product: | Zwart |
| Rackcapaciteit: | 4U |
| LED-indicatoren: | Ja |

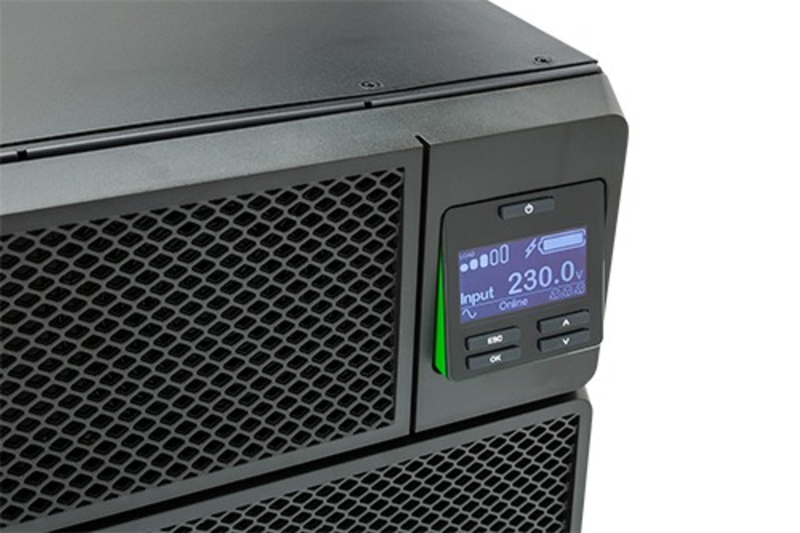

| Beeldscherm: | LCD |
| Internationale veiligheidscode (IP): | IP20 |
| Certificering: | CE, EAC, RCM, VDE, REACH |
| Kenmerken | |
| UPS-topologie: | Dubbele conversie (online) |
| Output power capacity: | 6 kVA |
| Uitgangsvermogen: | 6000 W |
| Golfvorm: | Sinus |
| Ingang operation voltage (min): | 160 V |
| Ingang operation voltage (max): | 275 V |
| Frequentie: | 40 - 70 Hz |
| Uitgang operation voltage (min): | 220 V |
| Uitgang operation voltage (max): | 240 V |
| Output frequentie: | 50/60 Hz |
| Surge energy rating: | 480 J |
| Crest factor: | 3:1 |
| Emergency Power Off (EPO): | Ja |
| Output voltage THD: | 3 procent |
| Geluidsniveau: | 55 dB |
| Spanningsbeveiliging: | Ja |
| Geluidsalarm(en): | Ja |
| Auto-herstart: | Ja |
| Temperatuurspanningscompensatie: | Ja |
| Logistieke gegevens | |
| Producten per pallet: | 6 stuk(s) |
