Artikelcode: RKCONS1716K
Netwerk - KVM - Zonder bekabeling

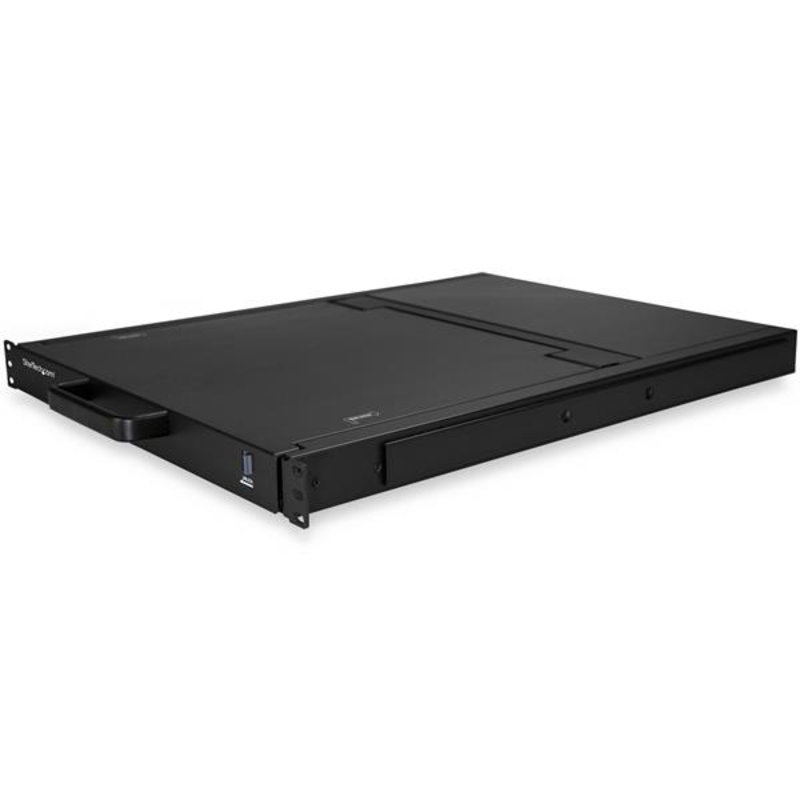

StarTech.com 16 Port Rackmount KVM Console - 43.18 cm (17") Display - 1U VGA KVM Console
Onbekend levertermijn Contacteer ons
Magazijn: tabr
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to 16 servers, this 16-port rackmount KVM consoleâ⬯gives youâ⬯easy accessâ⬯to yourâ⬯systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solutionâ⬯
The 1U rackmount console features a built-in keyboard, and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
Thisâ⬯16-portâ⬯KVM consoleâ⬯comes with everythingâ⬯you need to set up right out of the box:â⬯
16 VGA KVM Cables
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Maximize your server rack space with a 1U rackmount design
- Intuitive system integration with direct support for up to 16 servers
- Ready to use with built-in touchpad and keyboard
| Beeldscherm | Beeldschermdiagonaal: | 43,2 cm (17") | Resolutie: | 1280 x 1024 Pixels |
|---|---|---|---|
| Helderheid: | 250 cd/m² | Typische contrastverhouding: | 1000:1 |
| Kijkhoek, horizontaal: | 170° | Kijkhoek, verticaal: | 160° |
| On Screen Display (OSD): | Ja | Pixel pitch: | 0,264 x 0,264 mm |
| Beeldverhouding: | 5:4 | Beeldscherm type: | LCD |
| Responstijd: | 5 ms | Beeldscherm, aantal kleuren: | 16.78 miljoen kleuren |
| Poorten & interfaces | Aansluiting toetsenbord: | PS/2 | Aansluiting muis: | PS/2 |
| Aansluiting video: | VGA | Aantal USB 2.0 Type-A-poorten: | 2 |
| Gewicht en omvang | Breedte: | 448 mm | Hoogte: | 42,5 mm |
| Diepte: | 581 mm | Inbouwdiepte (min): | 56 cm |
| Inbouwdiepte (max): | 90 cm | ||
| Energie | Typisch stroomverbruik: | 23 W | AC-adapter ingangsspanning: | 100 - 240 V |
| Stroom: | 1.5 A | ||
| Eisen aan de omgeving | Temperatuur, in bedrijf: | 0 - 40 °C | Temperatuur bij opslag: | -20 - 60 °C |
| Technische details | Materiaal: | Staal | Mean time between failures (MTBF): | 50000 uur |
| Kleur van het product: | Zwart | Relatieve luchtvochtigheid, in bedrijf: | 10 - 80 procent |
| Rack-montage: | Ja | Doorgelust: | Nee |
| Sleutelsleuf: | Nee | LED-indicatoren: | Ja |
| Rackcapaciteit: | 1U | IP control: | N |
| Toetsenbord | Sneltoetsen: | Ja | |
| Verpakking | Gewicht verpakking: | 21 kg | Breedte verpakking: | 615 mm |
| Diepte verpakking: | 765 mm | Hoogte verpakking: | 185 mm |
| Certificaten | Certificering: | FCC, PSE, UL | RoHS compliance: | Ja |
| Inhoud van de verpakking | Meegeleverde kabels: | KVM | Inclusief schroeven: | Ja |
| Gebruikershandleiding: | Ja |
