Support PCIe Gen 5.0 graphics cards
The UD750GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 450 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD750GM PCIE 5.0 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Gu... Lees de volledige beschrijving
Design

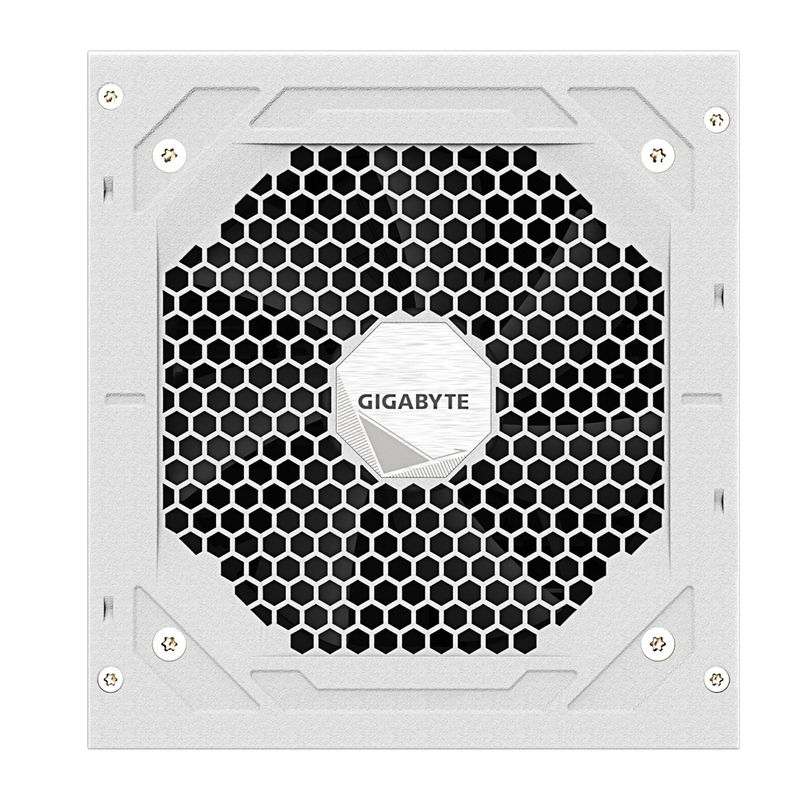

Cooling type > Active
Fan diameter > 12 cm
Fan location > Top
Number of fans > 1 ventilator(en)
On/off switch > Yes
Product colour > Black
Logistics data
Harmonized System (HS) code > 84733020
Packaging content
Cables included > CPU/PCIe/Peripheral (Molex)/SATA
Performance
80 PLUS certification > 80 PLUS Gold
ATX version > 2.31
Bearing technology > HYB
Mean time between failures (MTBF) > 100000 Hour
Power supply unit (PSU) form factor > ATX
Purpose > PC

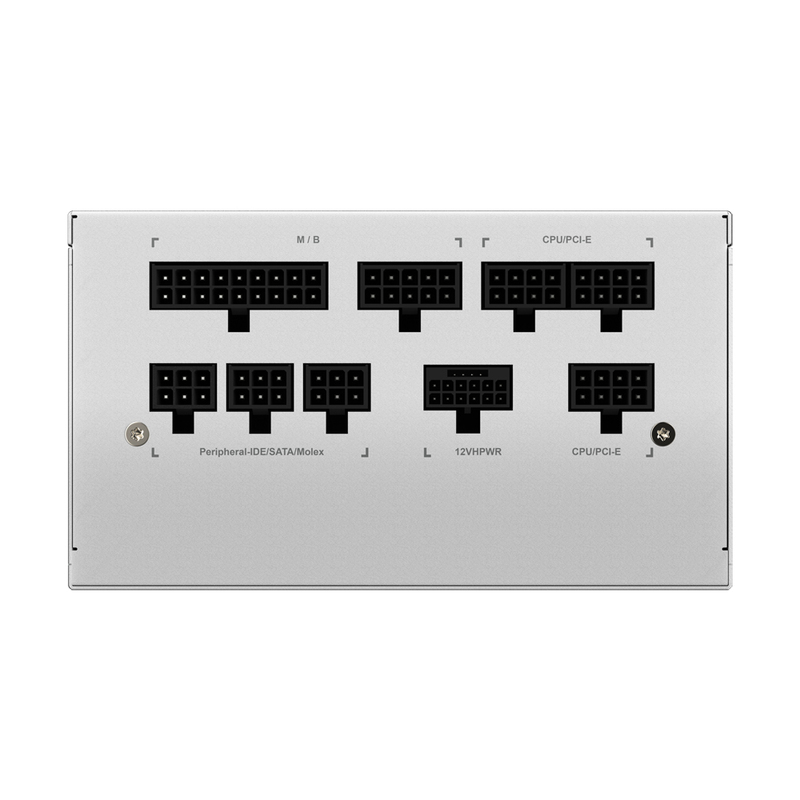

Ports & interfaces
ATX power connector (20+4 pin) > Yes
Cabling type > Fully-Modular
CPU power cable length > 60 cm
CPU power connector (4+4 pin) > Yes
EPS power connector (4+4 pin) > Yes
Floppy disk drive cable length > 15 cm
Floppy disk drive connector > Yes
Floppy drive power connector > 1
Motherboard power cable length > 61 cm
Motherboard power connector > 20+4 pin ATX
Number of SATA power connectors > 8
PCI Express power cable length > 60 cm
PCI Express power connectors (6+2 pin) > 4
Peripheral (Molex) power cable length > 120/500 mm
Peripheral (Molex) power connectors (4-pin) > 3
SATA power cable length > 150/300/450/600 mm
Power
AC input voltage > 100 - 240 V
Combined power (-12V) > 3,6 Watt
Combined power (+12V) > 732 Watt
Combined power (+3.3V) > 105 Watt
Combined power (+5V) > 105 Watt
Combined power (+5Vsb) > 15 Watt
Efficiency > 90 procent
Hold time > 16 Millisecond
Input current > 12 A
Max output current (-12V) > 2,3 A
Max output current (+12V) > 61 A
Max output current (+3.3V) > 20 A
Max output current (+5V) > 20 A
Max output current (+5Vsb) > 3 A
Power Factor Correction (PFC) type > Active
Power protection features > Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power > 750 Watt
Product dimensions
Product Depth > 14 cm
Product Height > 8,6 cm
Product Width > 15 cm
Vendor information
Brand Name > Gigabyte
Warranty > 1 Ja(a)r(en)
Categories
Main category > Server-, Computer- en Printeronderdelen
Subcategory > Servers en computers
Subcategory > Systeem componenten
Subcategory > Voedingen
