1000W, Active PFC, 120mm Hydraulic bearing fan, ATX 2.31, 80 PLUS Gold
Gigabyte P1000GM, 1000 W, 100 - 240 V, 50/60 Hz, 6.5 - 15 A, Actief, 125 W

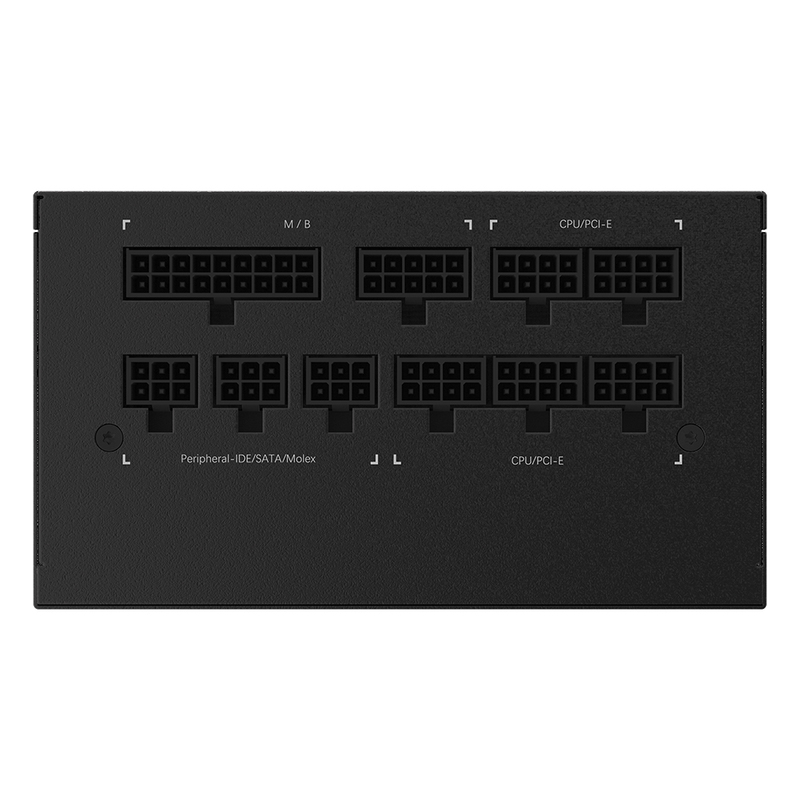

FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
DIMENSIONS Compact size to fit any small chassis.
| Design | |
|---|---|
| Ventilator diameter | 120 mm |
| Aan/uitschakelaar | Ja |
| Aantal ventilatoren | 1 ventilator(en) |
| Kleur van het product | Zwart |
| Ventilator locatie | Boven |
| Energie | |
| Max huidige output (+5Vsb) | 3 A |
| Power Factor Correctie (PFC) type | Actief |
| Gecombineerd vermogen (+12V) | 999.6 W |
| Gecombineerd vermogen (+5V) | 125 W |
| Gecombineerd vermogen(+5Vsb) | 15 W |
| AC invoer voltage | 100 - 240 V |
| AC invoer frequentie | 50/60 Hz |
| Houd-tijd | 16 ms |
| Gecombineerd vermogen (-12V) | 3.6 W |
| Stroom | 6.5 - 15 A |
| Efficientie | 90 procent |
| Max huidige output(+12V) | 83.3 A |
| Max huidige output (+3.3V) | 25 A |
| Max huidige output (+5V) | 25 A |
| Gecombineerd vermogen (+3.3V) | 125 W |
| Max huidige output (-12V) | 0.3 A |
| Stroomspanning bescherming | Overstroom, Te hoog vermogen, Overspanning, Kortsluiting, Onder spanning |
| Totaal vermogen | 1000 W |
| Gewicht en omvang | |
| Diepte | 150 mm |
| Breedte | 140 mm |
| Hoogte | 86 mm |
| Poorten & interfaces | |
| CPU power connector (4+4 pin) | Ja |
| Bekabelingstype | Modulair |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 6 |
| Aantal SATA power connectors | 8 |
| Floppy drive power connector | 1 |
| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (20+4 pin) | Ja |
| Lengte stroomkabel moederbord | 610 mm |
| Lengte stroomkabel randapparaat (Molex) | 500, 620, 740 mm |
| Lengte SATA-stroomkabel | 1050, 600, 750, 900 mm |
| Lengte PCI Express-stroomkabel | 750 mm |
| Lengte CPU-stroomkabel | 600 mm |
| EPS-voedingsconnector (4+4 pin) | Ja |
| Prestatie | |
| Mean time between failures (MTBF) | 100000 uur |
| 80 PLUS certificatie | 80 PLUS Gold |
| Bearing technologie | HDB |
| Bedoeld voor | PC |
| ATX version | 2.31 |
| Verpakking | |
| Meegeleverde kabels | CPU, PCIe, Peripheral (Molex), SATA |
| Type verpakking | Doos |
