| Processor | |
|---|---|
| Type processor: | Ja |
| Processorfabrikant: | Intel |
| Processorfamilie: | Intel Core i5 |
| Processorgeneratie: | Intel 13de generatie Core i5 |
| Processormodel: | i5-1335U |
| Aantal processorkernen: | 10 |
| Processor aantal threads: | 12 |
| Maximale turbofrequentie van processor: | 4,6 GHz |
| Prestatiekernen: | 2 |
| Efficiënte kernen: | 8 |
| Prestatie-kernboostfrequentie: | 4,6 GHz |
| Efficiënte kernboostfrequentie: | 3,4 GHz |
| Processor cache: | 12 MB |
| Thermal Design Power (TDP): | 15 W |
| ECC ondersteund door processor: | Nee |
| Geheugen | |
| Geheugen slots type: | SO-DIMM |
| Aantal geheugenslots: | 2 |
| Maximum intern geheugen: | 64 GB |
| Supported memory clock speeds: | 5200 MHz |
| Ondersteunde geheugen types: | DDR5-SDRAM |
| Geheugen kanaal: | Dubbelkanaals |
| Geheugen voltage: | 1.1 V |
| Audio | |
| Ingebouwde luidsprekers: | Nee |

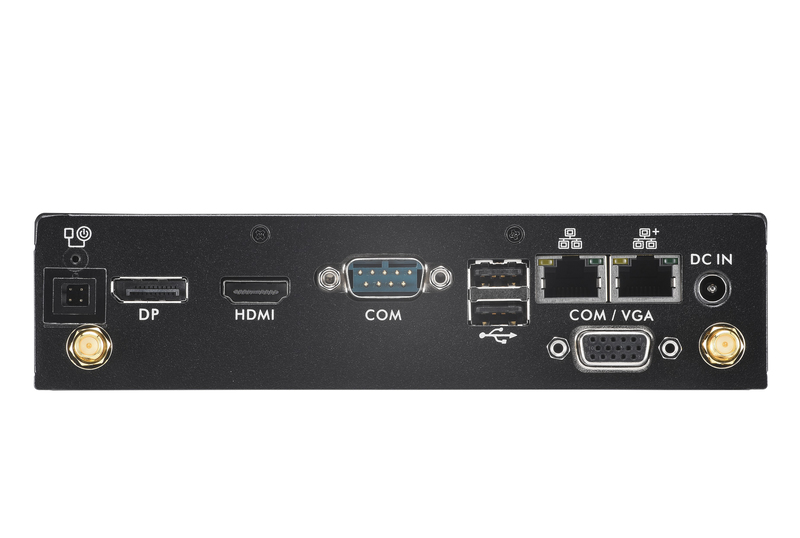

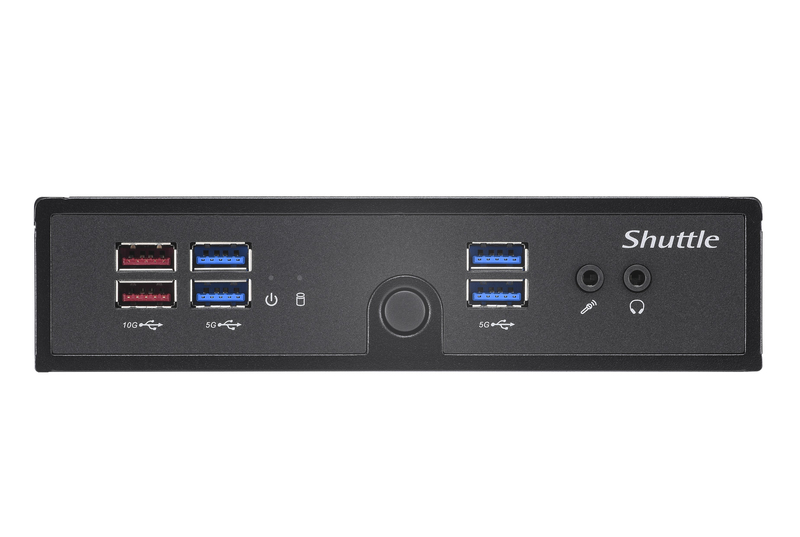

| Poorten & interfaces | |
| Aantal USB 2.0-poorten: | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 4 |
| Aantal HDMI-poorten: | 1 |
| VGA (D-Sub)poort(en): | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A: | 2 |
| HDMI versie: | 2.0b |
| Aantal DisplayPorts: | 1 |
| DisplayPort versie: | 1.4 |
| Microfoon, line-in ingang: | Ja |
| Hoofdtelefoonuitgangen: | 1 |
| Seriële poort(en): | 1 |
| Aansluiting voor netstroomadapter: | Ja |
| Gewicht en omvang | |
| Breedte: | 200 mm |
| Diepte: | 165 mm |
| Hoogte: | 39,5 mm |
| Gewicht: | 1,6 kg |
| Gewicht verpakking: | 2,3 kg |
| Energie | |
| Soort voeding: | Externe AC-adapter |
| Netvoeding: | 90 W |
| Aantal voedingen: | 1 |
| AC-ingangsspanning: | 100 - 240 V |
| AC-ingangsfrequentie: | 50/60 Hz |
| AC-adapter, uitgangsspanning: | 19 V |
| AC-adapter, uitgangsstroom: | 1,6 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 10 - 90 procent |
| Netwerk | |
| Ethernet LAN: | Ja |
| Wifi: | Nee |
| LAN controller: | Intel I219, Intel I226-LM |
| Opslagmedia | |
| Ondersteunde types opslag-drives: | HDD & SSD |
| Opslagschijf afmetingen ondersteund: | 2.5,M.2 |
| Opslag schijf-interface: | PCI Express, SATA III |
| NVMe: | Ja |
| Aantal storage drives ondersteund: | 3 |
| Software | |
| Ondersteunt Windows: | Windows 10, Windows 11 |
| Ondersteunt Linux: | Ja |
| Inclusief besturingssysteem: | Nee |
| Inhoud van de verpakking | |
| Inclusief netsnoer: | Ja |
| Inclusief AC-adapter: | Ja |
| Snelstartgids: | Ja |

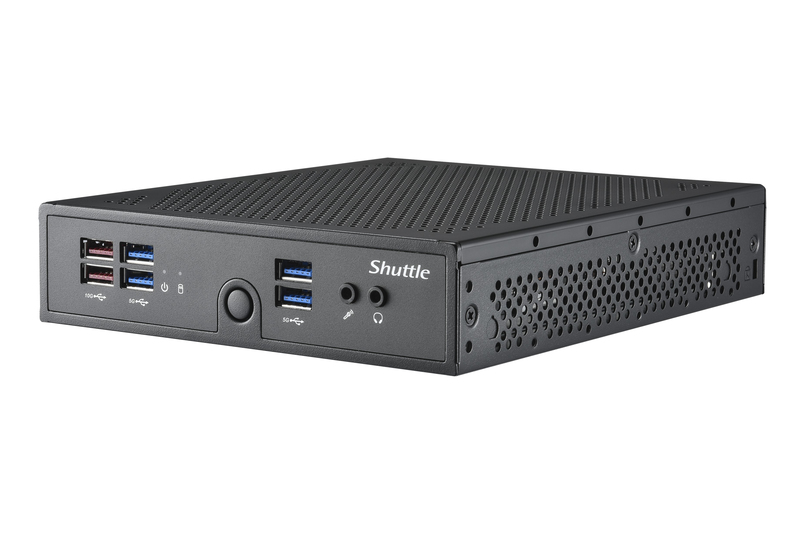

| Design | |
| Type behuizing: | 1,3L maat pc |
| Kleur van het product: | Zwart |
| Type koeling: | Passief |
| Type product: | Mini PC barebone |
| Aan/uitschakelaar: | Ja |
| LED-indicatoren: | HDD, Stroom |
| Materiaal behuizing: | Staal |
| Bevestigingsmogelijkheid voor kabelslot: | Ja |
| Kabelslot sleuf type: | Kensington |
| VESA-montage: | Ja |
| Paneelmontage-interface: | 75 x 75,100 x 100 mm |
| Grafisch | |
| Ingebouwde grafische adapter: | Ja |
| Grafische adapter-familie: | Intel |
| On-board graphics adapter model: | Intel UHD Graphics |
| Prestatie | |
| Aantal ondersteunde processoren: | 1 |
| BIOS type: | UEFI AMI |
| Trusted Platform Module (TPM): | Ja |
| Trusted Platform Module (TPM) version: | 2.0 |
| Audiochip: | RealTek ALC888S |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS): | 84733080 |
| Duurzaamheid | |
| Naleving van duurzaamheid: | Ja |
| Duurzaamheidscertificaten: | BSMI, CB, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
