| Processor | |
|---|---|
| Processorfabrikant: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Compatibele processors: | Intel Core Ultra (Series 2) |
| Supported processor sockets: | Intel LGA1851 |
| Maximaal intern geheugen ondersteund door processor: | 256 GB |
| Geheugen | |
| Ondersteunde geheugen types: | DDR5-SDRAM |
| Aantal geheugenslots: | 4 |
| Maximum intern geheugen: | 256 GB |
| Geheugen slots type: | DIMM |
| Geheugen kanaal: | Dubbelkanaals |
| Non-ECC: | Ja |
| Supported memory clock speeds: | 6400,9200 MHz |
| Ondersteunde geheugenkloksnelheid (max): | 9200 MHz |
| Gewicht en omvang | |
| Breedte: | 243,8 mm |
| Diepte: | 304,8 mm |
| Netwerk | |
| Wifi: | Ja |
| Ethernet LAN: | Ja |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Wifi-standaard: | Wi-Fi 7 (802.11be) |
| Wi-Fi-standaarden: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN-controller-model: | Killer Wi-Fi 7 BE1750 |
| Bluetooth: | Ja |
| Bluetooth-versie: | 5.4 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen: | 4 |
| USB 3.2-connectoren (3.1 Gen 2): | 1 |
| Aantal SATA III connectors: | 4 |
| Totaal aantal SATA-connectoren: | 4 |

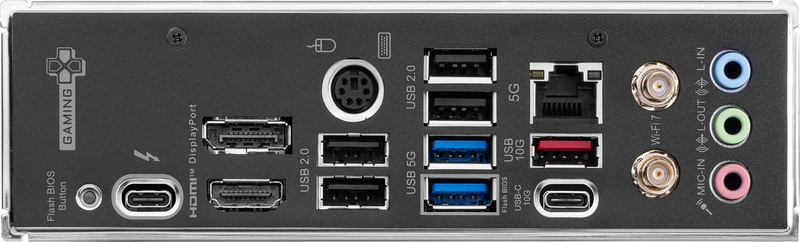

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten: | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A: | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C: | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Aantal HDMI-poorten: | 1 |
| HDMI versie: | 2.1 |
| Aantal DisplayPorts: | 1 |
| DisplayPort versie: | 1.4 |
| Hoeveelheid Thunderbolt ports: | 1 |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces: | M.2, SATA III |
| Ondersteunde types opslag-drives: | HDD & SSD |
| Maximum aantal HDD's per behuizing: | 8 |
| Aantal storage drives ondersteund: | 4 |
| RAID support: | Ja |
| Soorten RAID: | 0, 1, 5, 10 |
| Uitbreidingsmodules | |
| PCI Express x1 slots: | 1 |
| PCI Express x16 slots: | 3 |
| Aantal M.2 (M) slots: | 4 |
| Kenmerken | |
| Component voor: | PC |
| Moederbord form factor: | ATX |
| Moederbord chipset familie: | Intel |
| Chipset moederbord: | Intel Z890 |
| Audio-uitgangskanalen: | 7.1 kanalen |
| Audiochip: | Realtek ALC897 |
| Kleur van het product: | Zwart |
| Ondersteunt Windows: | Windows 11 |
