PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
DUAL BALL FAN BEARINGS

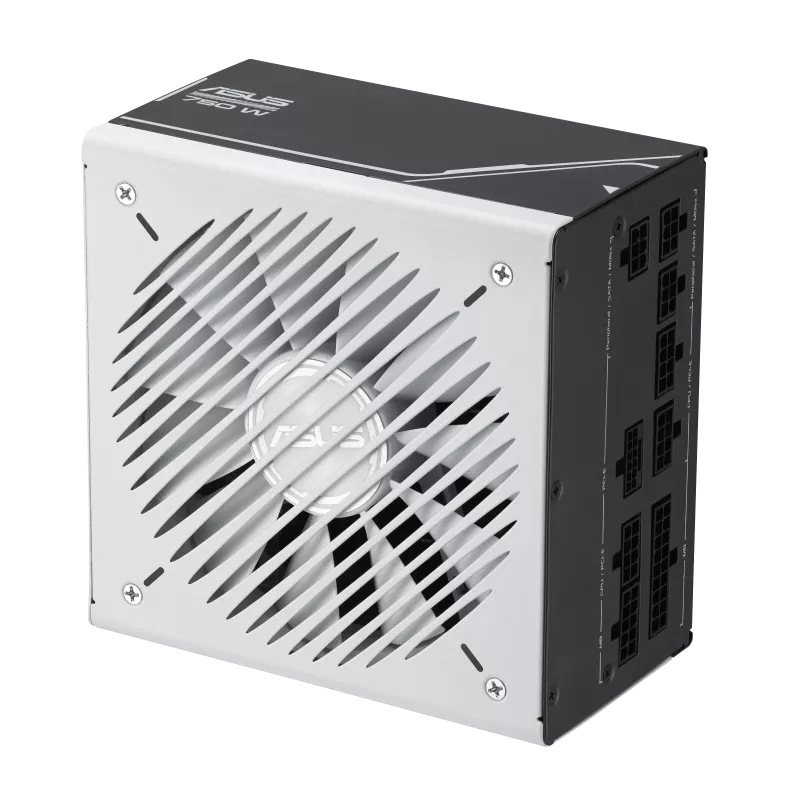

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION
The ASUS Prime 750W Go... Lees de volledige beschrijving
Design
Cooling type > Active
Fan diameter > 13,5 cm
Fan location > Top
Number of fans > 1 ventilator(en)
On/off switch > Yes
Product colour > Black, White
Package dimensions
Gross Weight (Package, kg) > 0,65 kg
Packaging content
Cables included > CPU, PCIe, SATA, Peripheral (Molex)
Performance
80 PLUS certification > 80 PLUS Gold
ATX version > 3.0
Bearing technology > DBB
Power supply unit (PSU) form factor > ATX
Purpose > PC

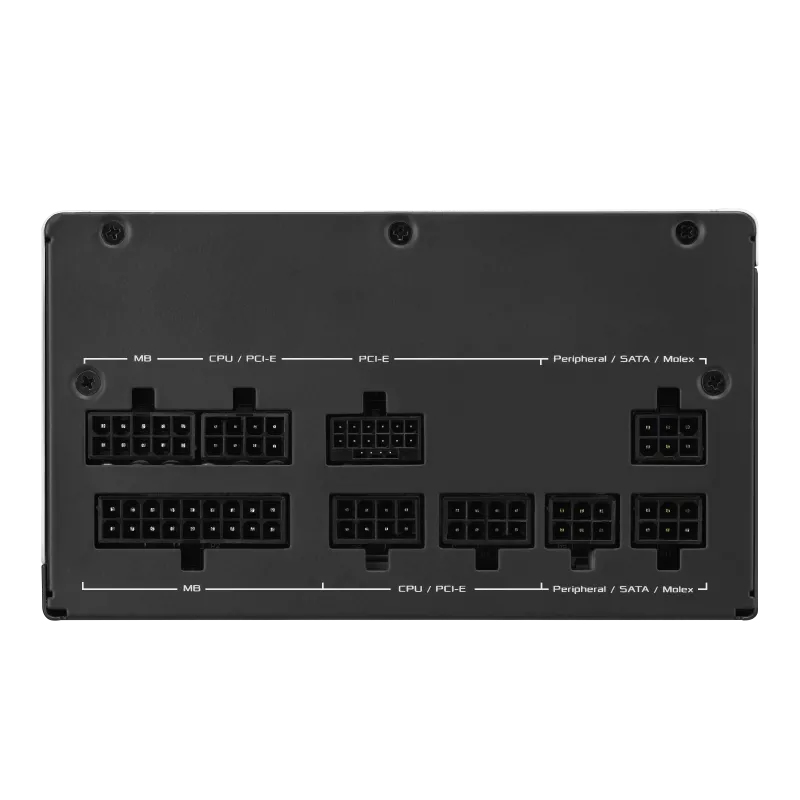

Ports & interfaces
CPU power cable length > 65 cm
CPU power connector (4+4 pin) > Yes
Motherboard power cable length > 61 cm
Motherboard power connector > 20+4 pin ATX
Number of SATA power connectors > 5
PCI Express power cable length > 67,5 cm
PCI Express power connectors (16-pin) > 1
PCI Express power connectors (8-pin) > 3
Peripheral (Molex) power cable length > 400, 150
Peripheral (Molex) power connectors (4-pin) > 3
SATA power cable length > 400, 120
Power
AC input voltage > 100 - 240 V
Combined power (-12V) > 3,6 Watt
Combined power (+12V) > 744 Watt
Combined power (+3.3V) > 110 Watt
Combined power (+5V) > 110 Watt
Combined power (+5Vsb) > 12,5 Watt
Max output current (-12V) > 0,3 A
Max output current (+12V) > 62 A
Max output current (+3.3V) > 20 A
Max output current (+5V) > 20 A
Max output current (+5Vsb) > 2,5 A
Power protection features > Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power > 750 Watt
Product dimensions
Net Weight (Product, kg) > 0,5 kg
Product Depth > 15 cm
Product Height > 8,6 cm
Product Width > 15 cm
Technical details
Sustainability certificates > RoHS
Vendor information
Brand Name > Asus
Warranty > 1 Ja(a)r(en)
