| Technische details | |
|---|---|
| Duurzaamheidscertificaten: | RoHS |

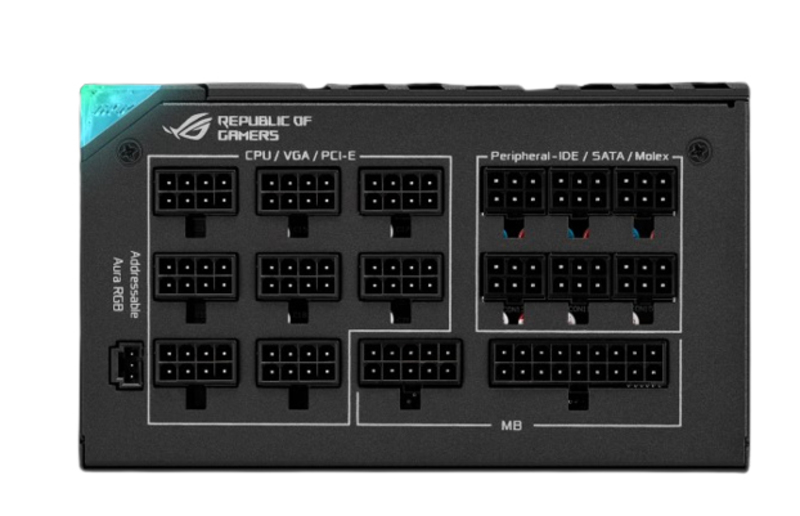

| Poorten & interfaces | |
| Motherboard power connector: | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 6 |
| Aantal SATA power connectors: | 12 |
| PCI Express power connectors (6+2 pin): | 8 |
| PCI Express power connectors (8-pin): | 1 |
| CPU P4 connector (4-pin): | 2 |
| CPU power connector (4+4 pin): | Ja |
| PCI Express connector: | Ja |
| Gewicht en omvang | |
| Breedte: | 190 mm |
| Diepte: | 150 mm |
| Hoogte: | 86 mm |
| Gewicht: | 2,37 kg |
| Energie | |
| Totaal vermogen: | 1000 W |
| AC-ingangsspanning: | 100 - 240 V |
| Maximale ingangsstroom (@220V): | 83 A |
| Gecombineerd vermogen (+3.3V): | 125 W |
| Gecombineerd vermogen (+12V): | 996 W |
| Gecombineerd vermogen (+5V): | 125 W |
| Gecombineerd vermogen (-12V): | 3,6 W |
| Gecombineerd vermogen(+5Vsb): | 15 W |
| Max huidige output (+3.3V): | 25 A |
| Max huidige output(+12V): | 83 A |
| Max huidige output (+5V): | 125 A |
| Max huidige output (-12V): | 0,3 A |
| Max huidige output (+5Vsb): | 3 A |
| Stroomspanning bescherming: | Overstroom, Te hoog vermogen, Overspanning, Overontlading, Kortsluiting, Onder spanning |
| Inhoud van de verpakking | |
| Meegeleverde kabels: | CPU, DC, PCIe, Peripheral (Molex), SATA |
| Inclusief kabelbinder(s): | Ja |
| Design | |
| Kleur van het product: | Zwart, Zilver |
| Type koeling: | Actief |
| Belichting: | Ja |
| LED-indicatoren: | Ja |
| Prestatie | |
| Bedoeld voor: | PC |
| 80 PLUS certificatie: | 80 PLUS Platinum |
| Stille modus: | Ja |
| Certificering: | ROHS |
