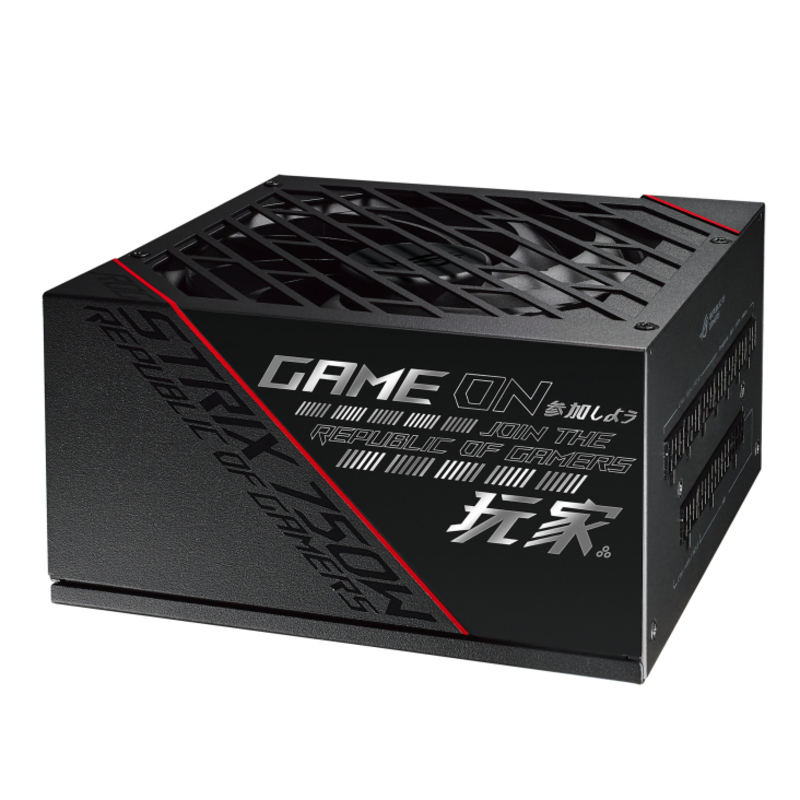

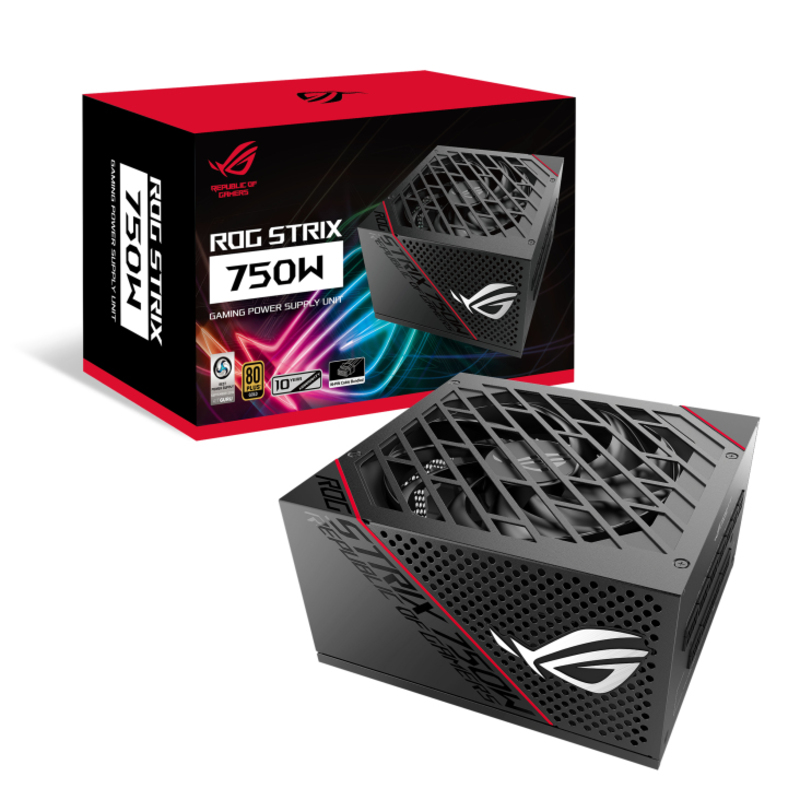

Frozen Silence
The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and ... Lees de volledige beschrijving
Design

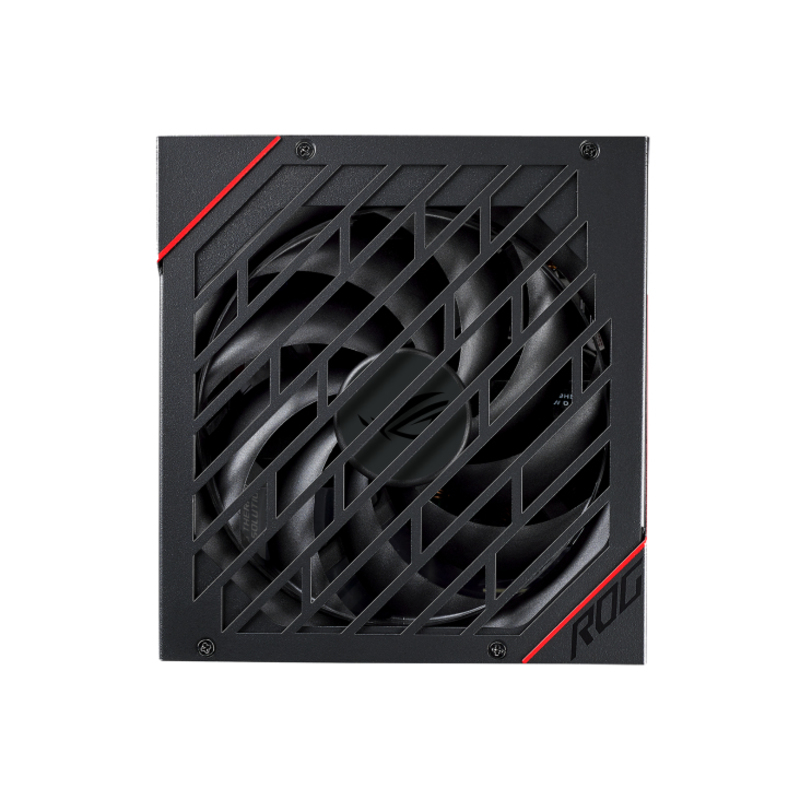

Cooling type > Active
Fan diameter > 13,5 cm
Fan location > Top
Number of fans > 1 ventilator(en)
On/off switch > Yes
Product colour > Black
Package dimensions
Depth (package,cm) > 18 cm
Gross Weight (Package, kg) > 0,65 kg
Height (package,cm) > 11,5 cm
Width (package,cm) > 31 cm
Packaging content
Cables included > CPU, PCIe, Peripheral (Molex), SATA
Performance
80 PLUS certification > 80 PLUS Gold
Bearing technology > DBB
Power supply unit (PSU) form factor > ATX
Purpose > PC

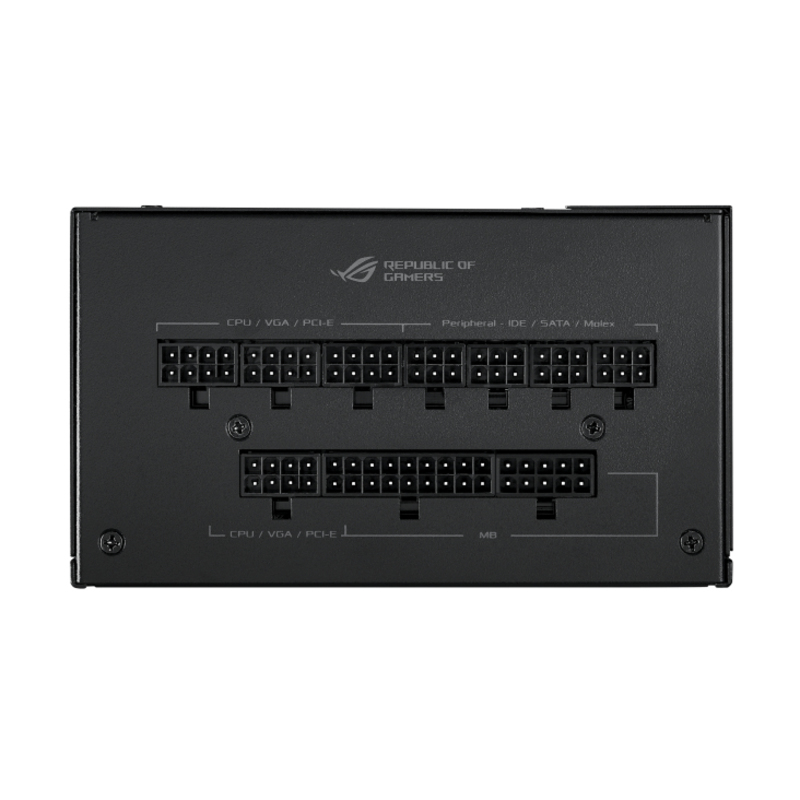

Ports & interfaces
Cabling type > Fully-Modular
CPU power cable length > 100 cm
CPU power connector (4+4 pin) > Yes
Motherboard power cable length > 61 cm
Motherboard power connector > 24-pin ATX
Number of SATA power connectors > 8
PCI Express power cable length > 67,5 cm
PCI Express power connectors (16-pin) > 1
PCI Express power connectors (6+2 pin) > 3
Peripheral (Molex) power cable length > 120, 450
Peripheral (Molex) power connectors (4-pin) > 4
SATA power cable length > 120, 150, 450
Power
AC input voltage > 100 - 240 V
Combined power (-12V) > 3,6 Watt
Combined power (+12V) > 744 Watt
Combined power (+3.3V) > 100 Watt
Combined power (+5V) > 100 Watt
Combined power (+5Vsb) > 15 Watt
Max output current (-12V) > 0,3 A
Max output current (+12V) > 62 A
Max output current (+3.3V) > 20 A
Max output current (+5V) > 20 A
Max output current (+5Vsb) > 3 A
Power protection features > Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power > 750 Watt
Product dimensions
Net Weight (Product, kg) > 0,5 kg
Product Depth > 15 cm
Product Height > 8,6 cm
Product Width > 16 cm
Technical details
Sustainability certificates > RoHS
Vendor information
Brand Name > Asus
Warranty > 1 Ja(a)r(en)
