| Processor | |
|---|---|
| Processorfabrikant: | AMD |
| Processor socket: | Socket sTR5 |
| Compatibele processors: | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Supported processor sockets: | Socket sTR5 |
| Geheugen | |
| Ondersteunde geheugen types: | DDR5-SDRAM |
| Aantal geheugenslots: | 4 |
| Maximum intern geheugen: | 1 TB |
| Geheugen slots type: | DIMM |
| Geheugen kanaal: | Dubbelkanaals |
| ECC-compatibiliteit: | ECC |
| Gewicht en omvang | |
| Breedte: | 305 mm |
| Diepte: | 280 mm |
| Netwerk | |
| Wifi: | Ja |
| Ethernet LAN: | Ja |
| Ethernet interface type: | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| LAN controller: | Intel I226-LM |
| Wifi-standaard: | Wi-Fi 7 (802.11be) |
| Wi-Fi-standaarden: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Ja |
| Bluetooth-versie: | 5.4 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen: | 1 |
| USB 3.2-connectoren (3.1 Gen 2): | 0 |
| Aantal SATA III connectors: | 4 |
| USB 3.2 Gen 2x2-aansluitingen: | 1 |
| Aantal SATA II connectors: | 0 |
| Aantal SATA-aansluitingen: | 0 |
| Aansluiting voor audiopaneel aan voorzijde: | Ja |
| Voorpaneel-connector: | Ja |
| ATX Power connector (24-pin): | Ja |
| Aansluiting voor CPU koeler: | Ja |
| Aansluitingen voor behuizingsventilatoren: | 4 |
| Chassis intrusion aansluiting: | Ja |
| EPS power connector (8-pin): | Ja |
| COM aansluitingen: | 1 |
| TPM connector: | Ja |
| 12V vermogen-connector: | Ja |
| Aantal temperatuursensorkoppen: | 1 |
| RGB LED-aansluitrail: | Ja |

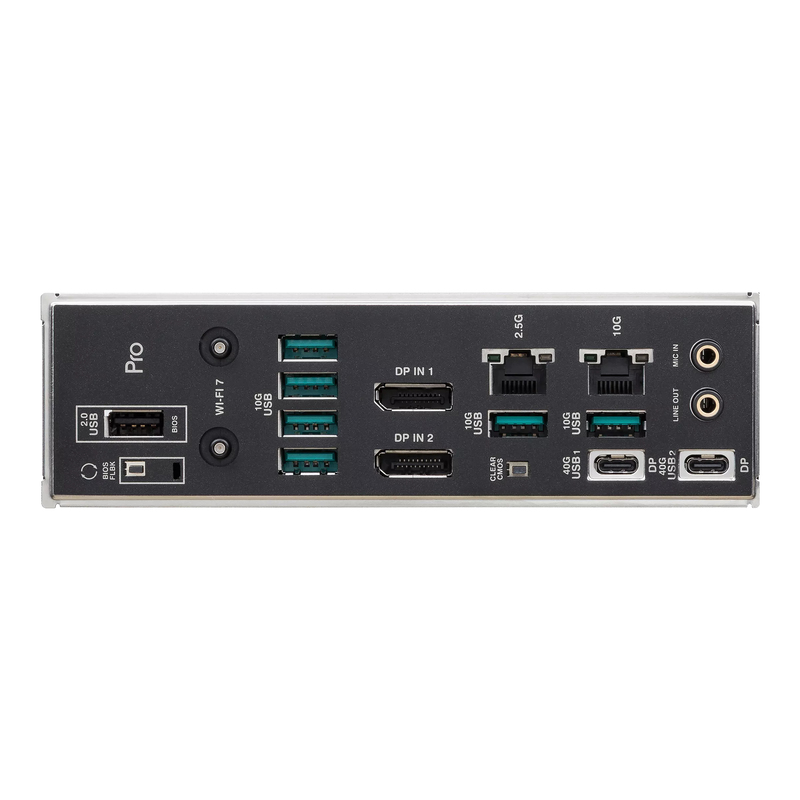

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten: | 1 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 0 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C: | 0 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A: | 6 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C: | 0 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 2 |
| VGA (D-Sub)poort(en): | 0 |
| Aantal HDMI-poorten: | 0 |
| DVI-D poorten: | 0 |
| Aantal USB4 Gen 3×2-poorten: | 2 |
| Aantal DisplayPorts: | 2 |
| WiFi-AP antenna jack: | 1 |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces: | M.2, SATA III, SlimSAS |
| Ondersteunde types opslag-drives: | HDD & SSD |
| Maximum aantal HDD's per behuizing: | 4 |
| Aantal storage drives ondersteund: | 10 |
| RAID support: | Ja |
| Soorten RAID: | 0, 1, 5, 10 |
| Verpakking | |
| Breedte verpakking: | 320 mm |
| Diepte verpakking: | 380 mm |
| Hoogte verpakking: | 100 mm |
| Gewicht verpakking: | 4,85 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels: | DisplayPort, SATA |
| Antenne inbegrepen: | Ja |
| Uitbreidingsmodules | |
| PCI Express x16 (Gen 4.x) sleuven: | 1 |
| PCI Express x16 (Gen 5.x) sleuven: | 3 |
| Aantal M.2 (M) slots: | 4 |
| 1e M.2 grootste sleutelgrootte: | 2280 |
| 1e M.2 hoogste PCI Express-generatie: | 5.0 |
| 2e M.2 grootste sleutelgrootte: | 2580 |
| 2e M.2 hoogste PCI Express-generatie: | 5.0 |
| 3e M.2 grootste sleutelgrootte: | 2280 |
| 3e M.2 hoogste PCI Express-generatie: | 4.0 |
| 4e M.2 grootste sleutelgrootte: | 2280 |
| 4e M.2 hoogste PCI Express-generatie: | 5.0 |
| BIOS | |
| BIOS type: | UEFI AMI |
| Grootte BIOS-geheugen: | 256 Mbit |
| Overige specificaties | |
| mSATA ports hoeveelheid: | 0 |
| Grafisch | |
| Ondersteuning voor parallel processing: | Niet ondersteund |
| Ingebouwde grafische adapter: | Nee |
| Kenmerken | |
| Component voor: | Workstation |
| Moederbord form factor: | CEB |
| Moederbord chipset familie: | AMD |
| Chipset moederbord: | AMD TRX50 |
| Audio-uitgangskanalen: | 5.1 kanalen |
| Audiochip: | Realtek ALC1220P |
| Kleur van het product: | Aluminium, Zwart |
| Ondersteunt Windows: | Windows 11 |
