| Processor | |
|---|---|
| Processorfabrikant: | Intel |
| Processor socket: | LGA 1700 |
| Compatibele processors: | Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold |
| Max. aantal SMP-processoren: | 1 |
| Supported processor sockets: | LGA 1700 |
| Geheugen | |
| Ondersteunde geheugen types: | DDR5-SDRAM |
| Aantal geheugenslots: | 4 |
| Maximum intern geheugen: | 128 GB |
| Geheugen slots type: | DIMM |
| Geheugen kanaal: | Dubbelkanaals |
| ECC-compatibiliteit: | ECC & Niet-ECC |
| Niet gebufferd geheugen: | Ja |
| Gewicht en omvang | |
| Breedte: | 305 mm |
| Diepte: | 244 mm |
| Hoogte: | 50 mm |
| Netwerk | |
| Wifi: | Nee |
| Ethernet LAN: | Ja |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Interne aansluitingen | |
| USB 2.0 aansluitingen: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen: | 1 |
| USB 3.2-connectoren (3.1 Gen 2): | 1 |
| Aantal SATA III connectors: | 4 |
| Aantal SATA II connectors: | 0 |
| Aantal SATA-aansluitingen: | 0 |
| Aansluiting voor audiopaneel aan voorzijde: | Ja |
| ATX Power connector (24-pin): | Ja |
| Aansluiting voor CPU koeler: | Ja |
| Aansluitingen voor behuizingsventilatoren: | 3 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| EPS power connector (8-pin): | Ja |
| COM aansluitingen: | 1 |
| TPM connector: | Ja |
| Thunderbolt-headers: | 1 |
| 12V vermogen-connector: | Ja |
| Geiïntegreerde SAS ports: | 1 |

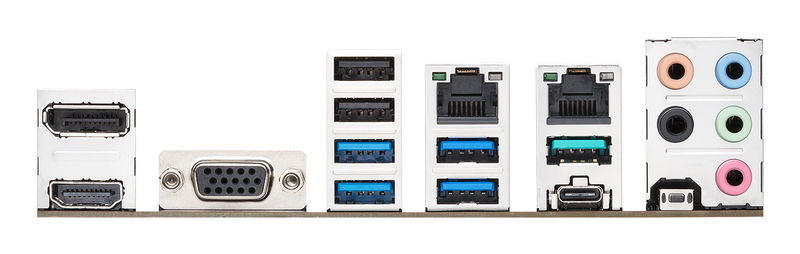

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten: | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 4 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C: | 0 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A: | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C: | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 2 |
| VGA (D-Sub)poort(en): | 1 |
| Aantal HDMI-poorten: | 1 |
| DVI-D poorten: | 0 |
| HDMI versie: | 2.1 |
| Aantal DisplayPorts: | 1 |
| DisplayPort versie: | 1.4 |
| Lijningang: | Ja |
| Microfoon, line-in ingang: | Ja |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces: | M.2, NVMe, SATA III |
| Ondersteunde types opslag-drives: | HDD & SSD |
| Maximum aantal HDD's per behuizing: | 8 |
| Aantal storage drives ondersteund: | 11 |
| RAID support: | Ja |
| Soorten RAID: | 0, 1, 5, 10 |
| Verpakking | |
| Breedte verpakking: | 331 mm |
| Diepte verpakking: | 266 mm |
| Hoogte verpakking: | 76 mm |
| Gewicht verpakking: | 1,18 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels: | SATA |
| Gebruiksaanwijzing: | Ja |
| Uitbreidingsmodules | |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 2 |
| Aantal M.2 (M) slots: | 3 |
| BIOS | |
| BIOS type: | UEFI AMI |
| Grootte BIOS-geheugen: | 256 Mbit |
| Overige specificaties | |
| mSATA ports hoeveelheid: | 0 |
| Gewicht: | 997 g |
| Back-to-BIOS button: | Ja |
| Aantal M.2 € slots: | 1 |
| Grafisch | |
| Ondersteuning voor parallel processing: | Niet ondersteund |
| Ingebouwde grafische adapter: | Nee |
| Kenmerken | |
| Component voor: | PC |
| Moederbord form factor: | ATX |
| Moederbord chipset familie: | Intel |
| Chipset moederbord: | Intel W680 |
| Audio-uitgangskanalen: | 7.1 kanalen |
| Kleur van het product: | Zwart |
| Type koeling: | Passief |
| Type stroombron: | ATX |
| Ondersteunt Windows: | Windows 10 x64, Windows 11 |
