GO BIG. STAY COMPACT.
33-LITERS OF COOL

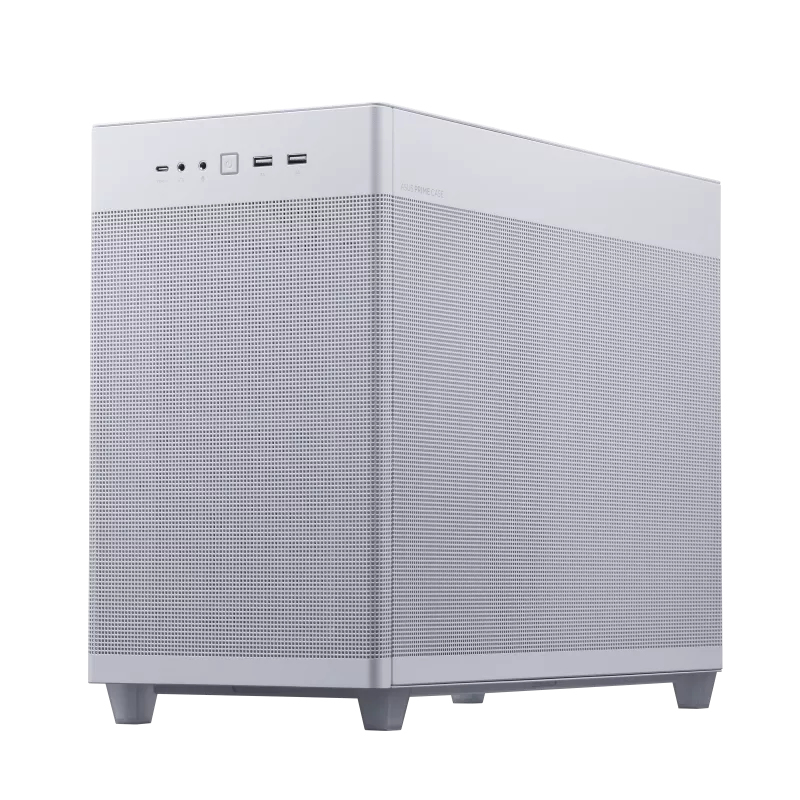

The ASUS Prime AP201 Tempered Glass Version is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels also provide easy access, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
INDUSTRY-LEADING SPATIAL EFFICIENCY
LOAD UP Lees de volledige beschrijving
Cooling
Number of rear fans supported (max) > 1
Number of top fans supported (max) > 3
Rear fans diameters supported > 120
Rear fans installed > 1x 120 mm
Rear radiator sizes supported > 120
Top fans diameters supported > 120, 140
Top radiator sizes supported > 120, 140, 240, 280, 360
Design
Anti-dust filter > Y

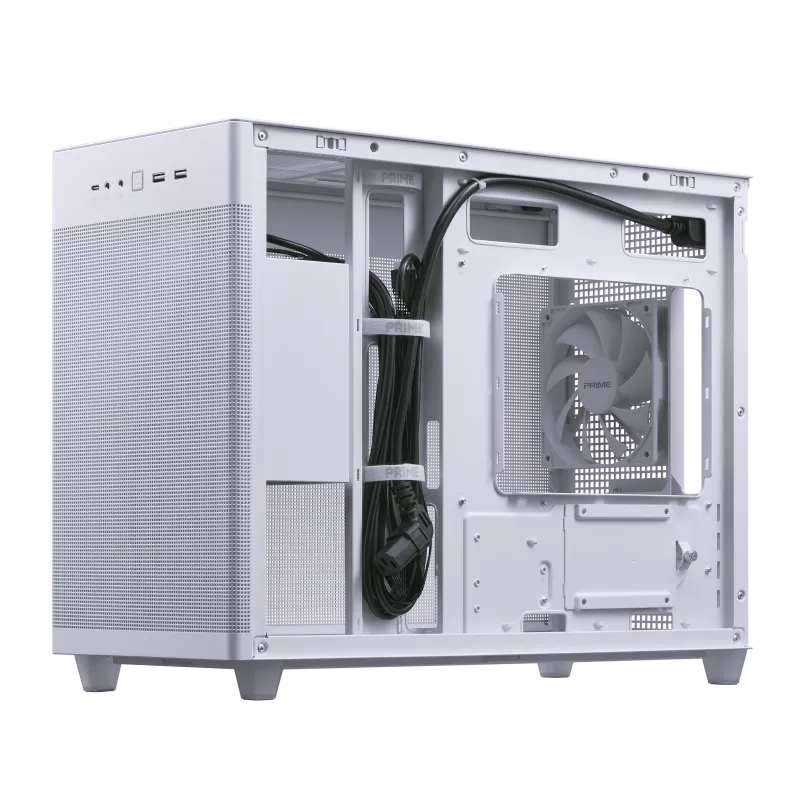

Cable management > Y
Form factor > Mini Tower
Maximum CPU cooler height > 17 cm
Maximum graphics card length > 33,8 cm
Maximum PSU length > 18 cm
Number of 2.5" bays > 1
Number of 3.5" bays > 3
Number of expansion slots > 4
Product colour > White
Side window > Y
Supported motherboard form factors > micro ATX, Mini-ITX
Tempered glass panel(s) > Y
Type > PC
Package dimensions
Gross Weight (Package, kg) > 6,5 kg
Ports & interfaces
Audio input > Y
Audio output > Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity > 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity > 1
Product dimensions
Net Weight (Product, kg) > 5 kg
Product Depth > 35 cm
Product Height > 46 cm
Product Width > 20,5 cm
Storage
Supported HDD sizes > 2.5, 3.5
Vendor information
Brand Name > Asus
Warranty > 1 Ja(a)r(en)
