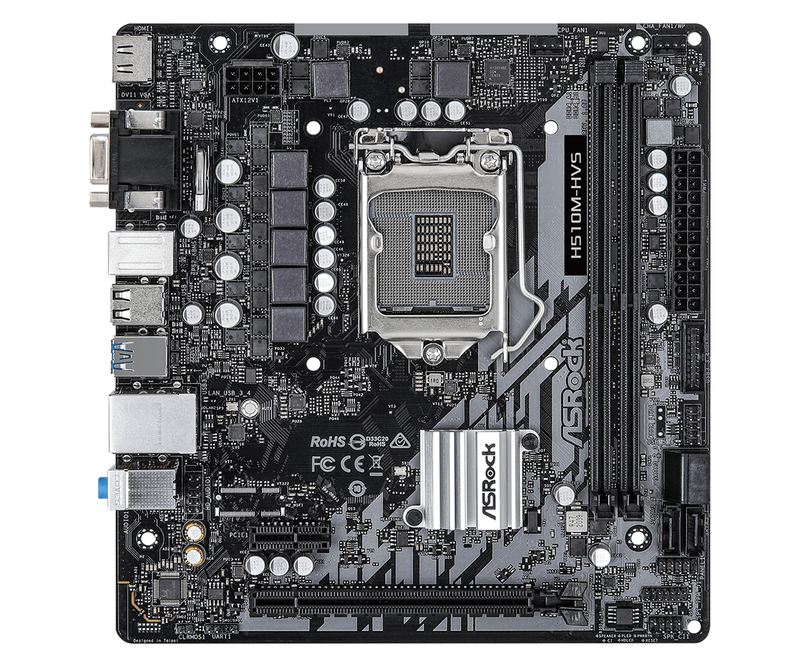

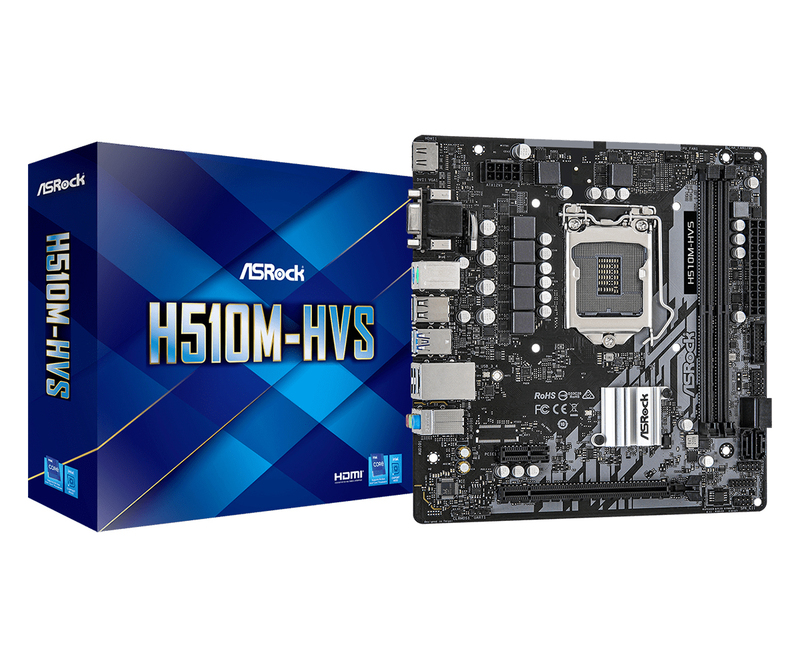

Asrock H510M-HVS. Processorfabrikant: Intel, Processor socket: LGA 1200 (Socket H5), Compatibele processors: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i7.... Ondersteunde geheugen types: DDR4-SDRAM, Maximum intern geheugen: 64 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: SATA III, Ondersteunde types opslag-drives: HDD. Maximum resolutie: 4096 x 2160 Pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Asrock H510M-HVS, Intel, LGA 1200 (Socket H5), Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i7..., LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB
| Aansluitingen achterzijde | |
|---|---|
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Aantal eSATA-poorten | 0 |
| Aantal IEEE 1394-/Firewire-poorten | 0 |
| VGA (D-Sub)poort(en) | 1 |
| HDMI versie | 2 |
| Aantal USB 2.0-poorten | 4 |
| Aantal HDMI-poorten | 1 |
| PS/2 poort(en) | 2 |
| Microfoon, line-in ingang | Ja |
| DVI-D poorten | 0 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 0 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 0 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 0 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| BIOS | |
| ACPI version | 6.0 |
| Grootte BIOS-geheugen | 128 Mbit |
| BIOS type | UEFI AMI |
| Systeem Management BIOS (SMBIOS) versie | 2.7 |
| Geheugen | |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3200 MHz |
| Geheugen kanaal | Dubbelkanaals |
| Niet gebufferd geheugen | Ja |
| Maximum intern geheugen | 64 GB |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Geheugen slots type | DIMM |
| Ondersteunde geheugenmodule capaciteiten | 2GB, 4GB, 8GB, 16GB, 32GB |
| Aantal geheugenslots | 2 |
| ECC-compatibiliteit | Niet-ECC |
| Gewicht en omvang | |
| Diepte | 244 mm |
| Breedte | 244 mm |
| Hoogte | 70 mm |
| Grafisch | |
| Maximum resolutie | 4096 x 2160 Pixels |
| DirectX versie | 12.0 |
| HDCP | Ja |
| OpenGL versie | 4.5 |
| Inhoud van de verpakking | |
| Meegeleverde drivers | Ja |
| Meegeleverde kabels | SATA |
| Meegeleverde software | ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN |
| Interne aansluitingen | |
| Aantal SATA III connectors | 4 |
| EPS power connector (8-pin) | Ja |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 2.0 aansluitingen | 1 |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| Aantal Parallel ATA aansluitingen | 0 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Chassis intrusion aansluiting | Ja |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Aantal SATA II connectors | 0 |
| ATX Power connector (24-pin) | Ja |
| USB 3.2-connectoren (3.1 Gen 2) | 0 |
| 12V vermogen-connector | Ja |
| Kenmerken | |
| PC gezondheids monitor | CPU, Ventilator, Temperatuur, Spanning |
| Ondersteunt Windows | Windows 10 x64 |
| Certificering | FCC, CE, ErP/EuP |
| Audio-uitgangskanalen | 7.1 kanalen |
| Moederbord chipset familie | Intel |
| Chipset moederbord | Intel H510 |
| Aantal montagegaten | 7 |
| Moederbord form factor | micro ATX |
| Component voor | PC |
| Type koeling | Actief |
| Audiochip | Realtek ALC897 |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733020 |
| Netwerk | |
| Wifi | Nee |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN | Ja |
| Ethernet LAN | Ja |
| Opslag-controllers | |
| Maximum aantal HDD's per behuizing | 4 |
| Ondersteunde types opslag-drives | HDD |
| Ondersteunde opslagstationinterfaces | SATA III |
| Overige specificaties | |
| Gewicht | 1000 g |
| Processor | |
| Processor socket | LGA 1200 (Socket H5) |
| Compatibele processors | Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i7 Extreme Edition, Intel Core i9, Intel Core i9 Extreme Edition, Intel Pentium G |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Processorfabrikant | Intel |
| Uitbreidingsmodules | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
