| Processor | |
|---|---|
| Processorfabrikant: | Intel |
| Processor socket: | LGA 1700 |
| Compatibele processors: | Intel Celeron, Intel Pentium Gold |
| Supported processor sockets: | LGA 1700 |
| Geheugen | |
| Ondersteunde geheugen types: | DDR5-SDRAM |
| Aantal geheugenslots: | 4 |
| Maximum intern geheugen: | 128 GB |
| ECC-compatibiliteit: | Niet-ECC |
| Supported memory clock speeds: | 4800,5000,5200,5400,5800,6000,6400,6600,6800,7000 MHz |
| Ondersteunde geheugenkloksnelheid (max): | 7000 MHz |
| Gewicht en omvang | |
| Breedte: | 304,8 mm |
| Diepte: | 243,8 mm |
| Netwerk | |
| Wifi: | Ja |
| Ethernet LAN: | Ja |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wifi-standaard: | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standaarden: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Bluetooth: | Ja |
| Bluetooth-versie: | 5.3 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen: | 4 |
| USB 3.2-connectoren (3.1 Gen 2): | 1 |
| Aantal SATA III connectors: | 6 |
| Aantal SATA II connectors: | 0 |
| Aantal SATA-aansluitingen: | 0 |
| Aansluiting voor audiopaneel aan voorzijde: | Ja |
| Voorpaneel-connector: | Ja |
| TPM connector: | Ja |
| RGB LED-aansluitrail: | Ja |

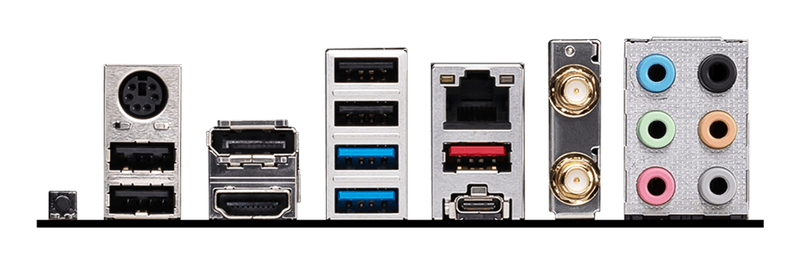

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten: | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 2 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C: | 0 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A: | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C: | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| VGA (D-Sub)poort(en): | 0 |
| Aantal HDMI-poorten: | 1 |
| DVI-D poorten: | 0 |
| Aantal USB 3.2 Gen 2.2 Type-C-poorten: | 1 |
| HDMI versie: | 2.1 |
| Aantal DisplayPorts: | 1 |
| DisplayPort versie: | 1.4 |
| S/PDIF-uitgang: | Ja |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces: | M.2, PCI Express |
| Ondersteunde types opslag-drives: | HDD & SSD |
| Interne opslagcapaciteit: | 10 GB |
| RAID support: | Ja |
| Soorten RAID: | 0, 1, 5, 10 |
| Inhoud van de verpakking | |
| Meegeleverde kabels: | SATA |
| Meegeleverde software: | Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition |
| Uitbreidingsmodules | |
| PCI-slots: | 0 |
| Aantal M.2 (M) slots: | 4 |
| BIOS | |
| BIOS type: | UEFI AMI |
| Grootte BIOS-geheugen: | 256 Mbit |
| Systeem Management BIOS (SMBIOS) versie: | 3.5 |
| Overige specificaties | |
| mSATA ports hoeveelheid: | 0 |
| Grafisch | |
| Ondersteuning voor parallel processing: | Niet ondersteund |
| Ingebouwde grafische adapter: | Nee |
| Kenmerken | |
| Component voor: | PC |
| Moederbord form factor: | ATX |
| Moederbord chipset familie: | Intel |
| Chipset moederbord: | Intel Z790 |
| Audio-uitgangskanalen: | 7.1 kanalen |
| Audiochip: | Realtek ALC897 |
| Kleur van het product: | Zwart |
| Ondersteunt Windows: | Windows 10 x64, Windows 11 x64 |
