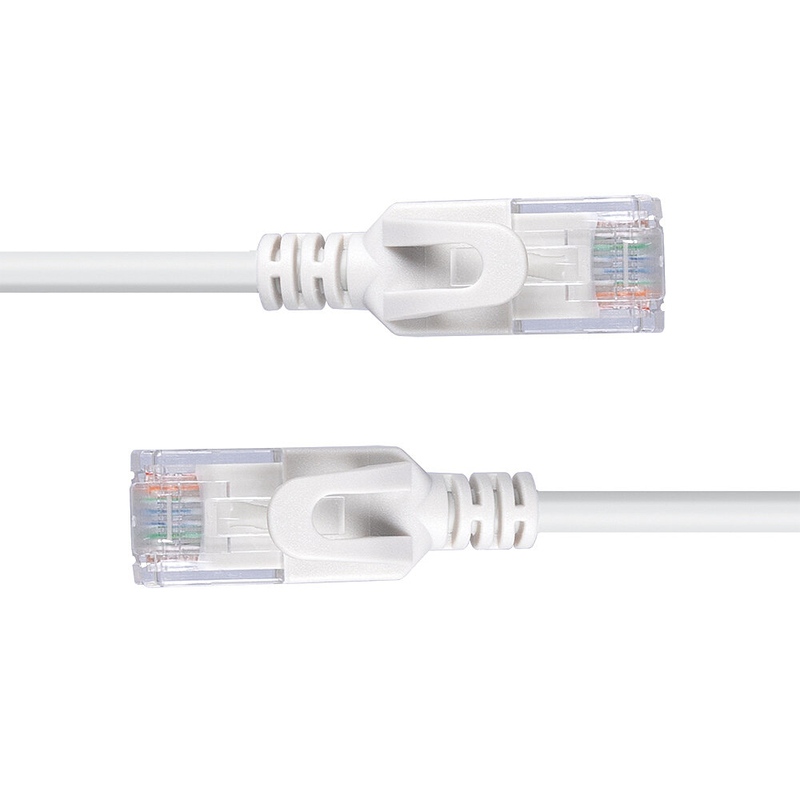

Cat.6A F/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (F/UTP). Designed as an ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cabl... Lees de volledige beschrijving
Features
AWG wire size > 30
Bend radius (min) > 6 cm
Cable length > 5 m
Cable shape > Round
Cable shielding > U/FTP (STP)
Cable standard > Cat6a
Certification > RoHS, REACH, UL, California
Conductor material > Copper
Connector 1 > RJ-45
Connector 1 form factor > Straight
Connector 1 gender > Male
Connector 2 > RJ-45
Connector 2 form factor > Straight
Connector 2 gender > Male
Connector contacts plating > Nickel
Connector shield material > Aluminium
Connector shielding > Yes
Frequency > 500 MHz
Jacket material > Polyvinyl chloride (PVC)
Nominal attenuation > 49.3dB/100m @ 500MHz
Product colour > Grey
Operational conditions
Operating temperature (T-T) > -10 - 60 °C
Storage temperature (T-T) > -10 - 40 °C
Packaging data
Quantity per pack > 1 stuk(s)
Product dimensions
Product Depth > 2,8 cm
Product Height > 0,6 cm
Product Width > 1,1 cm
Technical details
Sustainability certificates > REACH, RoHS, UL ECOLOGO
Sustainability compliance > Yes
Vendor information
Brand Name > Lindy
Weight & dimensions
Outer diameter > 3,6 mm
