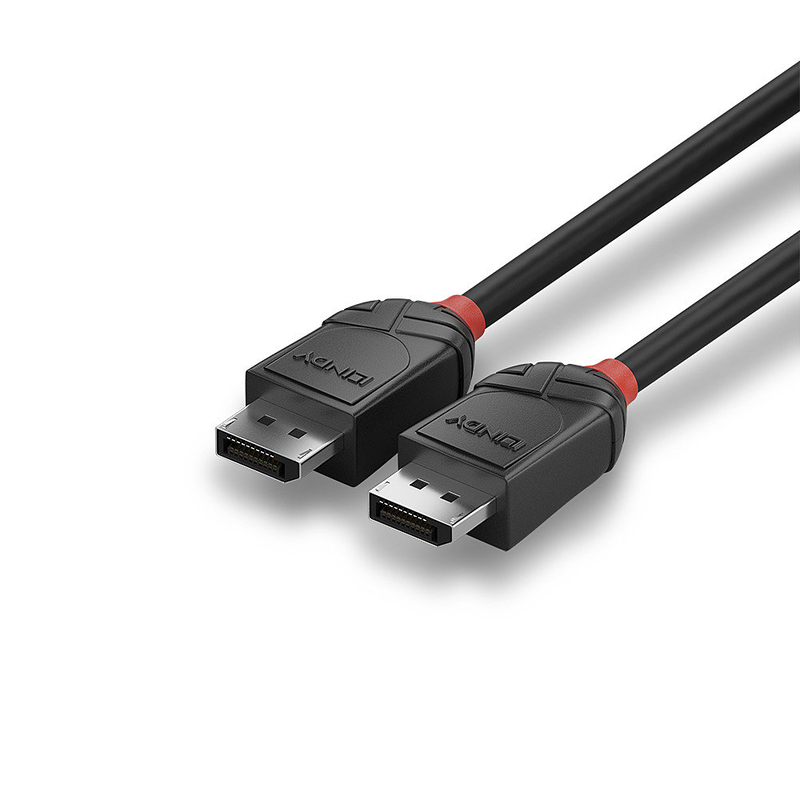

Entry level DisplayPort cable for home and small office applications
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, 24K gold plated contacts
Triple shielded cable, corrosion resistant copper 30AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect f... Lees de volledige beschrijving
Features
AWG wire size > 30
Bend radius (min) > 4,8 cm
Cable length > 1 m
Cable material > Copper
Cable shielding > Copper
Cable type > Round cable
Certification > RoHS, REACH, UL
Colour sampling > 4:4:4
Connector 1 > DisplayPort
Connector 1 form factor > Straight
Connector 1 gender > Male
Connector 2 > DisplayPort
Connector 2 form factor > Straight
Connector 2 gender > Male
Connector contacts plating > Gold
Connector housing material > Acrylonitrile butadiene styrene (ABS)
Connector material > Nickel
Contact material > Phosphor bronze
Data transfer rate > 21,6 Gbit/s
DisplayPort version > 1.2
Jacket material > Polyvinyl chloride (PVC)
Maximum resolution > 4096 x 2160 Pixels
Nominal attenuation > 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Plug and Play > Yes
Product colour > Black
Supported graphics resolutions > 4096 x 2160
Supported video modes > 2160p
Logistics data
Harmonized System (HS) code > 84733080
Operational conditions
Operating temperature (T-T) > -20 - 80 ðC
Storage temperature (T-T) > -25 - 85 ðC
Package dimensions
Gross Weight (Package, kg) > 0,39 kg
Packaging data
Cable diameter > 6 mm
Connector 1 dimensions (WxDxH) > 21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH) > 21 x 38.9 x 13.6 mm
Quantity per pack > 1 stuk(s)
Product dimensions
Net Weight (Product, kg) > 0,3 kg
Sustainability
Sustainability certificates > RoHS
Vendor information
Brand Name > Lindy
Warranty > 10 Ja(a)r(en)
