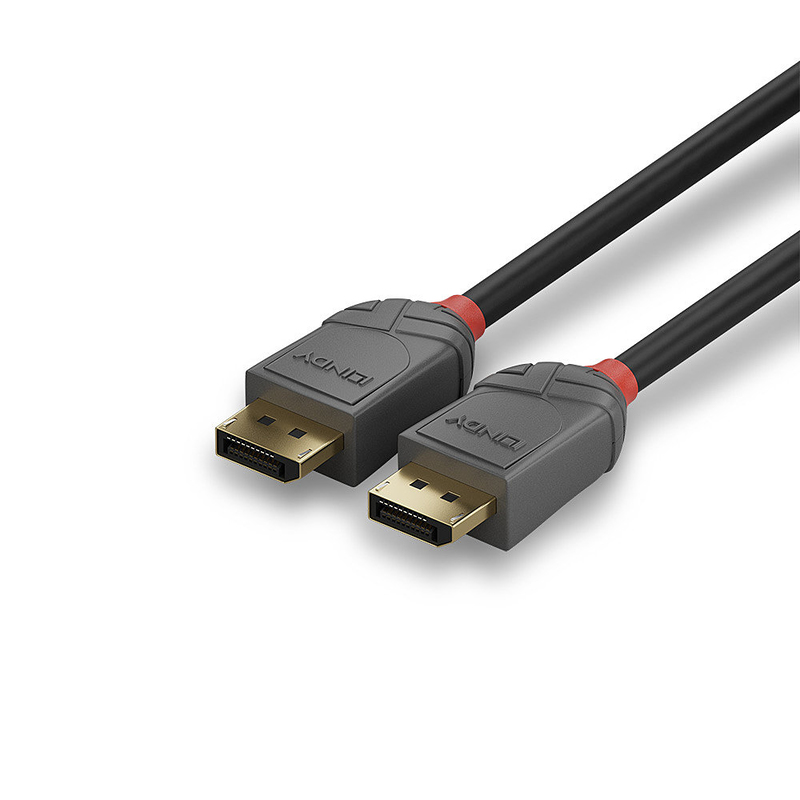

Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.4, 8K 4K, 3D, 32.4Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cabl... Lees de volledige beschrijving
Features
AWG wire size > 28
Bend radius (min) > 5,84 cm
Cable length > 2 m
Cable material > Tinned copper
Cable shielding > Copper
Cable type > Round cable
Certification > RoHS, REACH, UL
Colour sampling > 4:2:2
Connector 1 > DisplayPort
Connector 1 form factor > Straight
Connector 1 gender > Male
Connector 2 > DisplayPort
Connector 2 form factor > Straight
Connector 2 gender > Male
Connector contacts plating > Gold
Connector housing material > Acrylonitrile butadiene styrene (ABS)
Connector material > Gold
Contact material > Phosphor bronze
Data transfer rate > 32,4 Gbit/s
DisplayPort version > 1.4
Jacket material > Polyvinyl chloride (PVC)
Maximum resolution > 7680 x 4320 Pixels
Nominal attenuation > 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Product colour > Black
Supported graphics resolutions > 4096 x 2160, 7680 x 4320
Logistics data
Harmonized System (HS) code > 84733080
Operational conditions
Operating temperature (T-T) > -20 - 80 ðC
Storage temperature (T-T) > -25 - 85 ðC
Other features
Depth > 3,89 cm
Height > 1,36 cm
Width > 2,1 cm
Package dimensions
Gross Weight (Package, kg) > 0,39 kg
Packaging data
Cable diameter > 7,3 mm
Connector 1 dimensions (WxDxH) > 21 x 38.9 x 13.6 mm
Product dimensions
Net Weight (Product, kg) > 0,3 kg
Product Depth > 3,89 cm
Product Height > 1,36 cm
Product Width > 2,1 cm
Vendor information
Brand Name > Lindy
Warranty > 10 Ja(a)r(en)
