Artikelcode: 2S232422485-PC-CARD
Componenten - Controllers - Serieel / Parallel

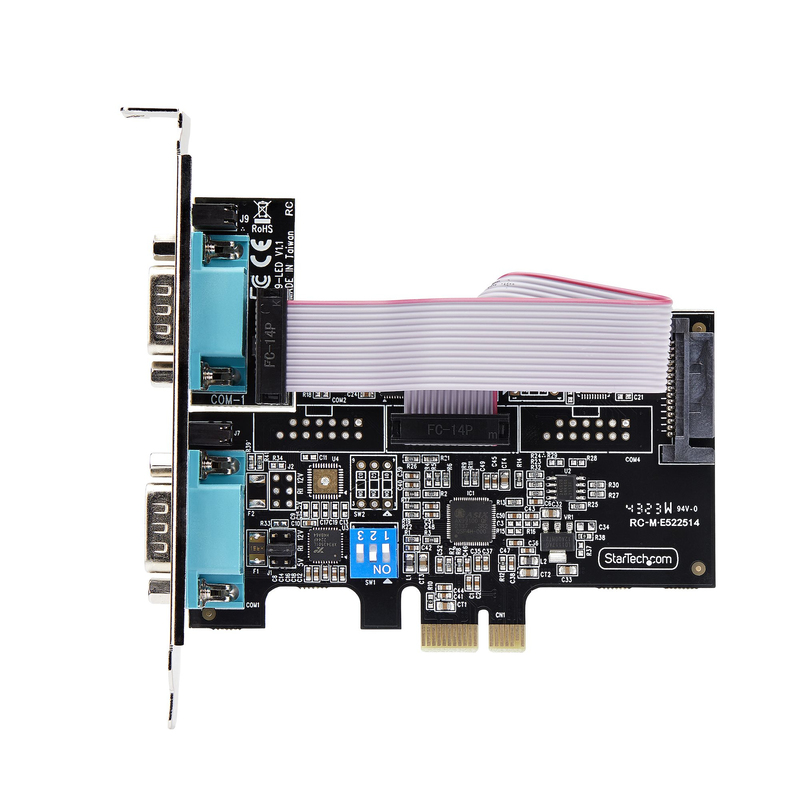

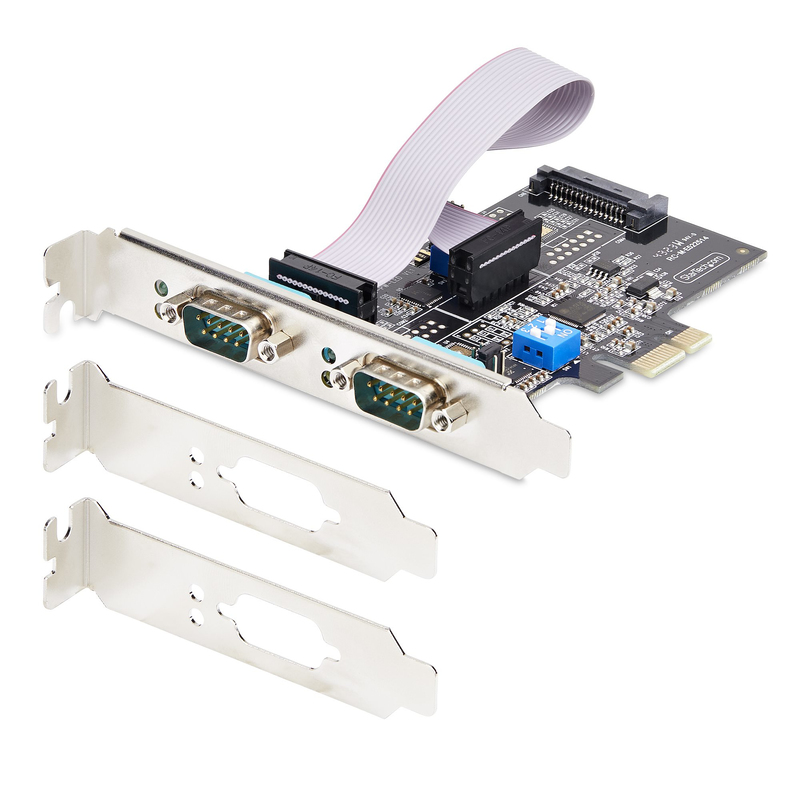

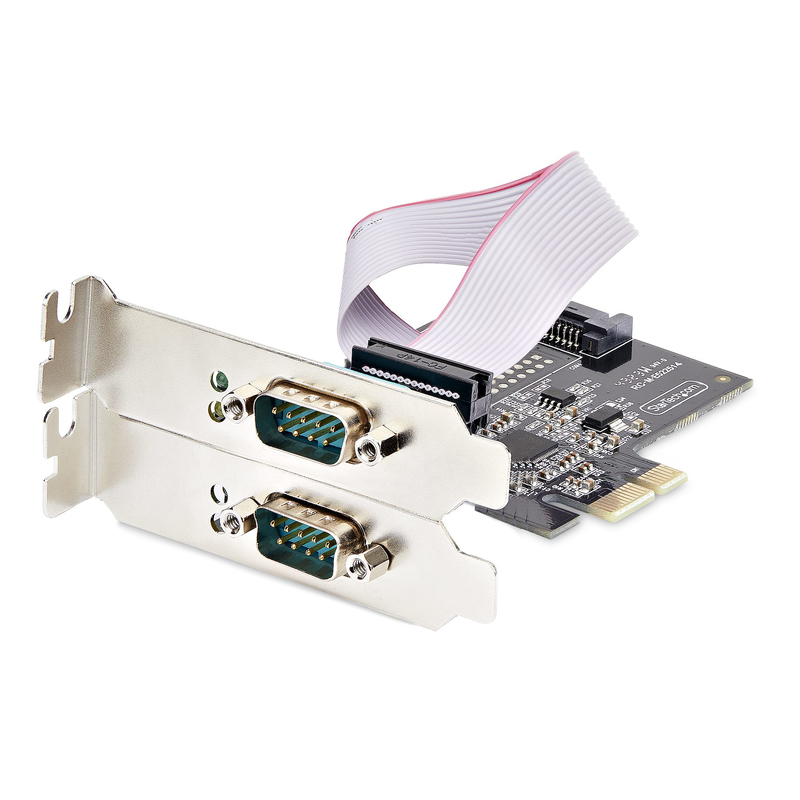

StarTech.com 2-Port PCIe Seriële Adapter Kaart, Quad PCI Express naar RS232/RS422/RS485 (DB9) Kaart, Standaard/Low-Profile Beugel, 16C1050 UART, Windows/Linux, ESD Bescherming (2S232422485-PC-CARD)
Geschatte levertermijn:
19-09-2026 Contacteer ons
Magazijn: tabr
Voeg twee RS-232, RS-422 of RS-485 DB9 seriële poorten toe aan een desktopcomputer via een PCIe x1 uitbreidingskaartThe StarTech.com Advantage
| Technische details | |
|---|---|
| Naleving van duurzaamheid: | Ja |
| Duurzaamheidscertificaten: | RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Minimale systeemeisen | |
| Ondersteunt Windows: | Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
| Ondersteunt Linux: | Ja |
| Ondersteunde server operating systems: | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Poorten & interfaces | |
| Hostinterface: | PCIe |
| Output interface: | Serie |
| Uitbreidingskaartstandaard: | PCIe 2.0 |
| Seriële poort(en): | 2 |
| Soort serieële aansluiting: | RS-232/422/485 |
| Gewicht en omvang | |
| Breedte: | 102 mm |
| Diepte: | 105 mm |
| Hoogte: | 16 mm |
| Gewicht: | 57 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T): | 0 - 70 °C |
| Temperatuur bij opslag: | -20 - 80 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 20 - 80 procent |
| Verpakking | |
| Meegeleverde kabels: | Lintkabel |
| Montagebeugels meegeleverd: | Ja |
| Snelle installatiehandleiding: | Ja |
| Breedte verpakking: | 142 mm |
| Diepte verpakking: | 170 mm |
| Hoogte verpakking: | 30 mm |
| Gewicht verpakking: | 147,6 g |
| Overige specificaties | |
| Electrostatic Discharge (ESD) bescherming: | 15 kV |
| Design | |
| Intern: | Ja |
| Kleur van het product: | Zwart |
| Kenmerken | |
| Chipset: | ASIX - AX99100 |
| Baud snelheid: | 921,6 Kbit/s |
| FIFO (First In, First Out): | 256 B |
| Data bits: | 5, 6, 7, 8, 9 |
| Stop bits: | 1, 1.5, 2 |
| Datastroombeheer: | Ja |
| Parity bit: | Even, Mark, Nee, ODD, Ruimte |
| Logistieke gegevens | |
| Hoeveelheid per (buitenste) hoofdverpakking: | 75 stuk(s) |
| (Buitenste) hoofdverpakking breedte: | 685 mm |
| (Buitenste) hoofdverpakking lengte: | 345 mm |
| (Buitenste) hoofdverpakking hoogte: | 306 mm |
